For many electronics hobbyists and hardware startups, the leap from hand-assembling prototypes to automated production is a "valley of death." Standard DIY Pick and Place projects often end in frustration with 3D-printed parts flexing or belt-driven systems losing steps.

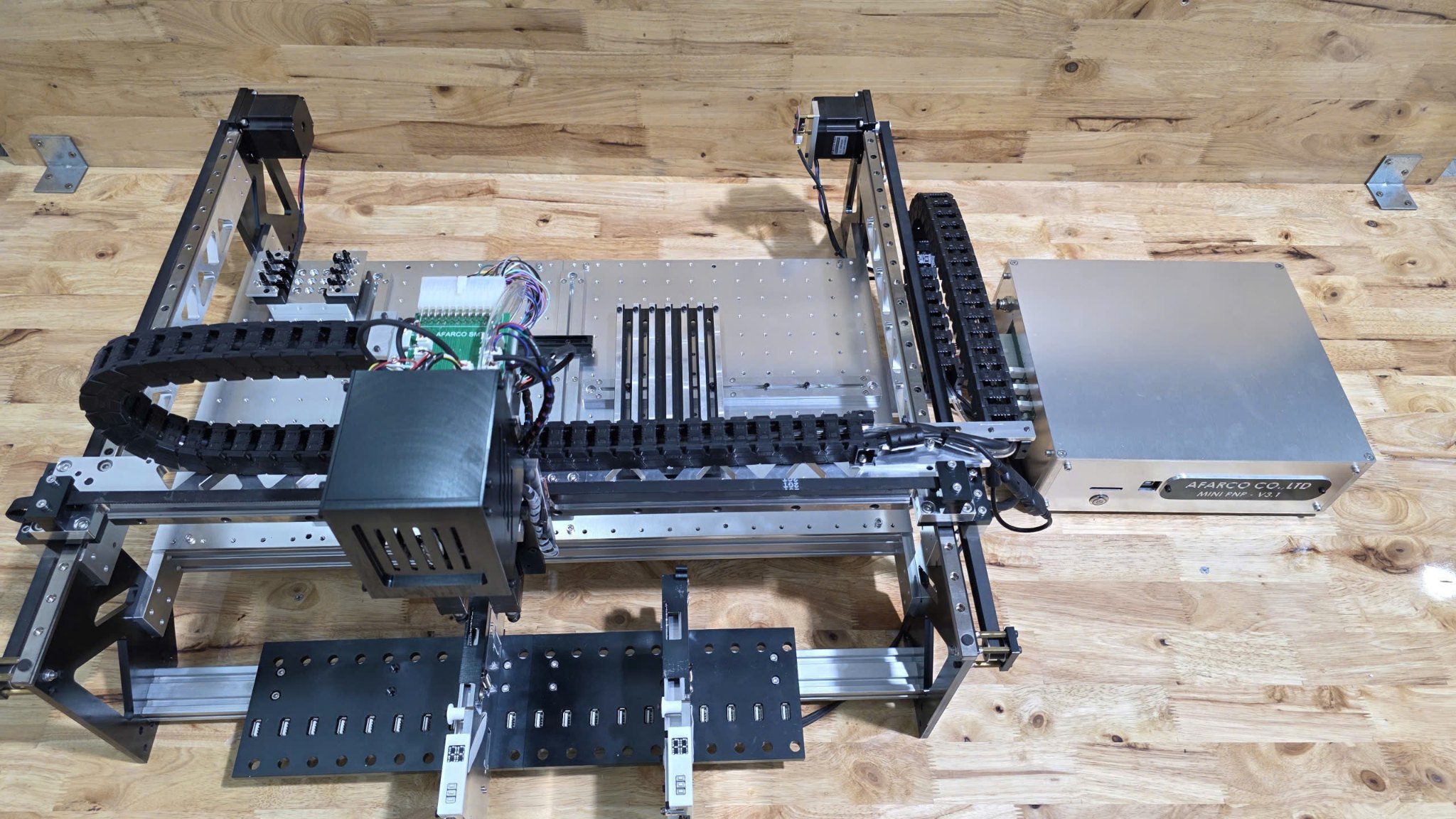

Enter the AFARCO MINI PNP V3.1—a machine that bridges the gap between affordable DIY kits and high-end industrial SMT lines.

1. Precision Engineering: No More 3D-Printed Compromises

Unlike many entry-level machines, the AFARCO MINI V3.1 features a frame constructed entirely from solid CNC 6061 Aluminum Alloy. This provides the structural rigidity required for high-speed placement without the vibrations that plague lighter machines.

  • Placement Accuracy: Handles components down to 0201 with ease.

  • Build Quality: No 3D-printed structural components, ensuring long-term thermal stability and mechanical alignment.

2. Seamless OpenPnP Integration

The heart of the V3.1 is its native compatibility with OpenPnP. For users in the US and Europe, this means access to a massive global community and a software platform that is constantly improving.

  • Dual Camera System: Equipped with high-definition Top and Bottom cameras for precise part alignment and feeder calibration.

  • Plug & Play (PNP): While it's a "DIY" priced machine, the V3.1 arrives with pre-crimped connectors and modular sub-assemblies, reducing setup time from days to just a few hours.

3. Performance & Speed

Time is money, especially when you're scaling a hardware business. The AFARCO MINI PNP V3.1 offers impressive throughput for its size:

  • Speed: Up to 2,500 CPH (Vision OFF) or a stable 1,800 CPH (Vision ON).

  • Feeder Capacity: Supports up to 20 AF Feeder V2 positions, allowing you to run complex boards in a single pass.

  • Nozzle System: Uses standard Samsung CP45 nozzles with an automatic change station.

4. Why It’s Winning in the Western Market

Makers in the US and Europe often struggle with the "hidden costs" of DIY—spending hundreds of hours on calibration instead of design. The AFARCO MINI V3.1 is priced competitively (starting around $1,668) but offers the "industrial feel" usually reserved for machines 3x the price. Its compact footprint makes it perfect for a home lab or a small engineering office.

Technical Specifications at a Glance

FeatureSpecification
Working Area340mm x 540mm
Max Component Size18mm x 18mm
Placement HeadsDual Head System
Feeder TypeAF Feeder V2 (CNC Aluminum)
SoftwareOpenPnP Original
Power SupplyInternal 24V System

Final Verdict

If you are serious about SMT automation but don't have the budget for a $10,000 industrial machine, the AFARCO MINI PNP V3.1 is currently the top contender in the budget category. It eliminates the "jankiness" of traditional DIY builds while keeping the flexibility of the OpenPnP ecosystem.

Ready to automate your SMT workflow?

Visit https://www.afarco.com to explore the Basic and Full kit options today.

Afarco Mini PnP V3.1 Unboxing & Assembly

This video provides a detailed look at the unboxing and the simple assembly process, which is a key selling point for users looking for a "Plug and Play" DIY experience.
