In the rapidly evolving world of SMT (Surface Mount Technology), desktop Pick and Place machines have bridged the gap between manual soldering and expensive industrial lines. Two of the most talked-about machines in the open-source ecosystem are the Afarco Mini PnP v3.1 and the LumenPnP.
But which one is right for your specific workflow? In this deep dive, we compare their design, performance, and value proposition.
I. Design Philosophy: DIY vs. Production-Ready
LumenPnP (by Opulo):
The LumenPnP is the poster child for the "Maker" movement. It is designed to be modular and highly customizable. It uses V-slot aluminum extrusions and 3D-printed parts, making it a dream for those who want to understand every bolt of their machine.
Afarco Mini PnP v3.1:

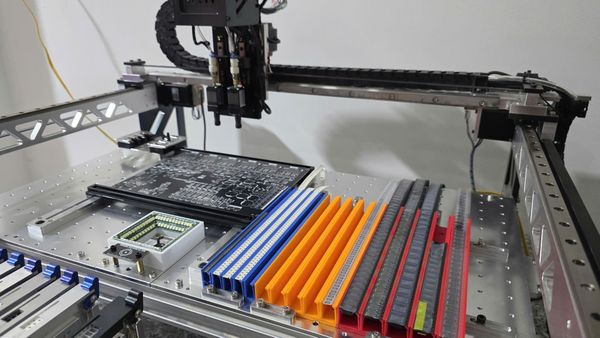

The Afarco Mini v3.1 takes a more "Industrial-Lite" approach. While it remains compatible with the OpenPnP ecosystem, its focus is on mechanical rigidity. By utilizing precision linear rails and a more compact, integrated frame, it targets users who need a machine that works reliably with minimal constant re-calibration.
II. Technical Specifications Comparison
A direct comparison of the hardware reveals why these machines cater to different user bases:
| Feature | Afarco Mini PnP v3.1 | LumenPnP |
| Motion System | High-Precision Linear Rails | V-Slot Wheels & Extrusions |
| Frame Material | CNC Machined & Reinforced Aluminum | Modular Aluminum Extrusion |
| Nozzle System | Dual Juki Nozzles (Standard) | Dual Juki Nozzles (Standard) |
| Vision System | Dual Top/Bottom Cameras | Dual Top/Bottom Cameras |
| Feeder Support | High-Density Pneumatic/Electric | Standard Strip/Pneumatic |
| Setup Time | Semi-Assembled (Fast) | Full Kit (Significant) |
III. Key Performance Factors
1. Accuracy and Repeatability
The Afarco Mini PnP v3.1 shines here. Linear rails offer significantly less "play" than V-slot wheels over time. If you are placing 0402 components or fine-pitch ICs (QFN, BGA), the mechanical stability of the Afarco v3.1 provides a higher first-pass yield.
2. Speed (CPH - Components Per Hour)
While both machines are limited by the OpenPnP software's processing speed, the Afarco's rigid frame allows for higher acceleration $(mm/s^2)$ without inducing vibrations that might cause parts to shift before placement.
3. Maintenance and Durability
V-slot wheels on the LumenPnP wear out and require periodic tightening. In contrast, the linear guides on the Afarco v3.1 are designed for industrial longevity, requiring only basic lubrication.
IV. Frequently Asked Questions (FAQ)
Q1: Can I use OpenPnP with both machines?
A: Yes! Both machines are fully compatible with OpenPnP, the leading open-source software for pick and place control.
Q2: Which machine is better for 0402 components?
A: While both can do it, the Afarco Mini PnP v3.1 is recommended for 0402 due to its superior mechanical rigidity and use of linear rails, which reduce placement errors.
Q3: Is the Afarco Mini v3.1 easy to set up?
A: Yes, it comes semi-assembled. Unlike full DIY kits that can take days to build, the Afarco is designed to be operational within a few hours.
Q4: Can I upgrade the feeders on these machines?
A: Absolutely. Both support various feeder types, but Afarco’s mounting system is specifically optimized for high-density setups to save space.
V. Final Verdict: Which One Should You Choose?
Choose the LumenPnP if: You are a hobbyist who enjoys the building process, wants the lowest entry price, and plans to heavily customize the hardware.
Choose the Afarco Mini PnP v3.1 if: You run a small business or prototype lab. You need a stable, compact, and precise machine that delivers professional results with less downtime for maintenance.
