The Foundation of Precision: A Deep Dive into the AFARCO Mini PnP V3.1 CNC Chassis

In the world of DIY Pick and Place (PnP), the software (OpenPnP) is only half the battle. The real challenge for many builders is hardware rigidity. If your frame flexes or vibrates, even the best computer vision won't save you from failed 0402 placements.

This is where the AFARCO Mini PnP V3.1 steps in, shifting the focus from "good enough" DIY builds to industrial-grade stability.

Why CNC Machined Aluminum Matters

Most entry-level DIY machines rely on V-slot extrusions or 3D-printed brackets. While affordable, these materials lack the mass and tolerance required for high-speed, high-accuracy movement.

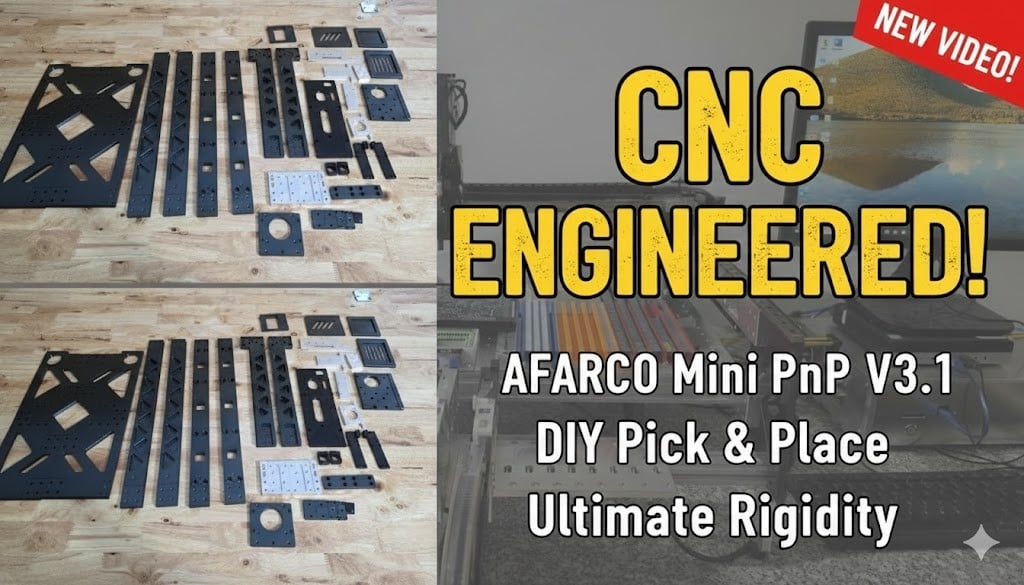

The AFARCO Mini V3.1 is built on a full CNC machined aluminum frame. This isn't just about looks—it’s about engineering:

  • Zero Flex: The high-grade aluminum chassis ensures the X and Y axes remain perfectly square, even during rapid accelerations.

  • Vibration Dampening: The mass of the machined components absorbs the harmonics generated by stepper motors, leading to smoother nozzle travel.

  • Extreme Tolerances: CNC machining allows for micron-level precision that hand-assembled extrusions simply cannot match.

Built for the OpenPnP Power User

If you are running OpenPnP, you know that repeatability is king. The AFARCO Mini V3.1’s hardware is designed to complement the advanced vision capabilities of OpenPnP. Whether you are placing 0603s, 0402s, or fine-pitch QFNs, the rock-solid frame ensures that your machine's "bottom camera" and "nozzle offset" calibrations stay accurate over thousands of cycles.

Compact Size, Industrial Strength

Don’t let the "Mini" tag fool you. While it occupies a small footprint on your workbench, the build quality mirrors that of professional SMT lines. It is the ideal solution for:

  • Prototyping labs looking for fast turnarounds.

  • Small-scale manufacturers moving away from hand-soldering.

  • Engineering hobbyists who demand the best hardware for their DIY projects.

Final Verdict

If you’ve ever struggled with a "shaky" PnP build, the AFARCO Mini PnP V3.1 is the upgrade you’ve been waiting for. By investing in a high-precision CNC frame, you are removing the biggest bottleneck in DIY PCB assembly.

Technical Specifications: AFARCO Mini PnP V3.1

Để tối ưu cho người xem tại Mỹ, tôi đã sử dụng thuật ngữ kỹ thuật tiêu chuẩn trong ngành SMT và gia công cơ khí.

FeatureSpecification
Frame MaterialAircraft-grade 6061-T6 Aluminum
Manufacturing ProcessHigh-Precision 3-Axis CNC Machining
Surface FinishIndustrial Anodized (Scratch Resistant)
Supported SoftwareOpenPnP (Fully Compatible)
Component Compatibility0402, 0603, 0805, QFN, TQFP, BGA
Axis Drive SystemHigh-Accuracy Linear Rails & GT2 Belts/Lead Screws
Frame RigidityUltra-High (Zero-flex design for high acceleration)
Nozzle SystemStandard Juki / Nema 8 Hollow Shaft Motors
ConnectivityUSB-C / Serial (Controller Dependent)
FootprintDesktop-friendly compact design

"Unlike common aluminum extrusions that rely on T-nuts and manual alignment, every part of the AFARCO Mini V3.1 is precision-milled. This ensures the machine stays perfectly square for years, reducing the need for constant recalibration in OpenPnP."
