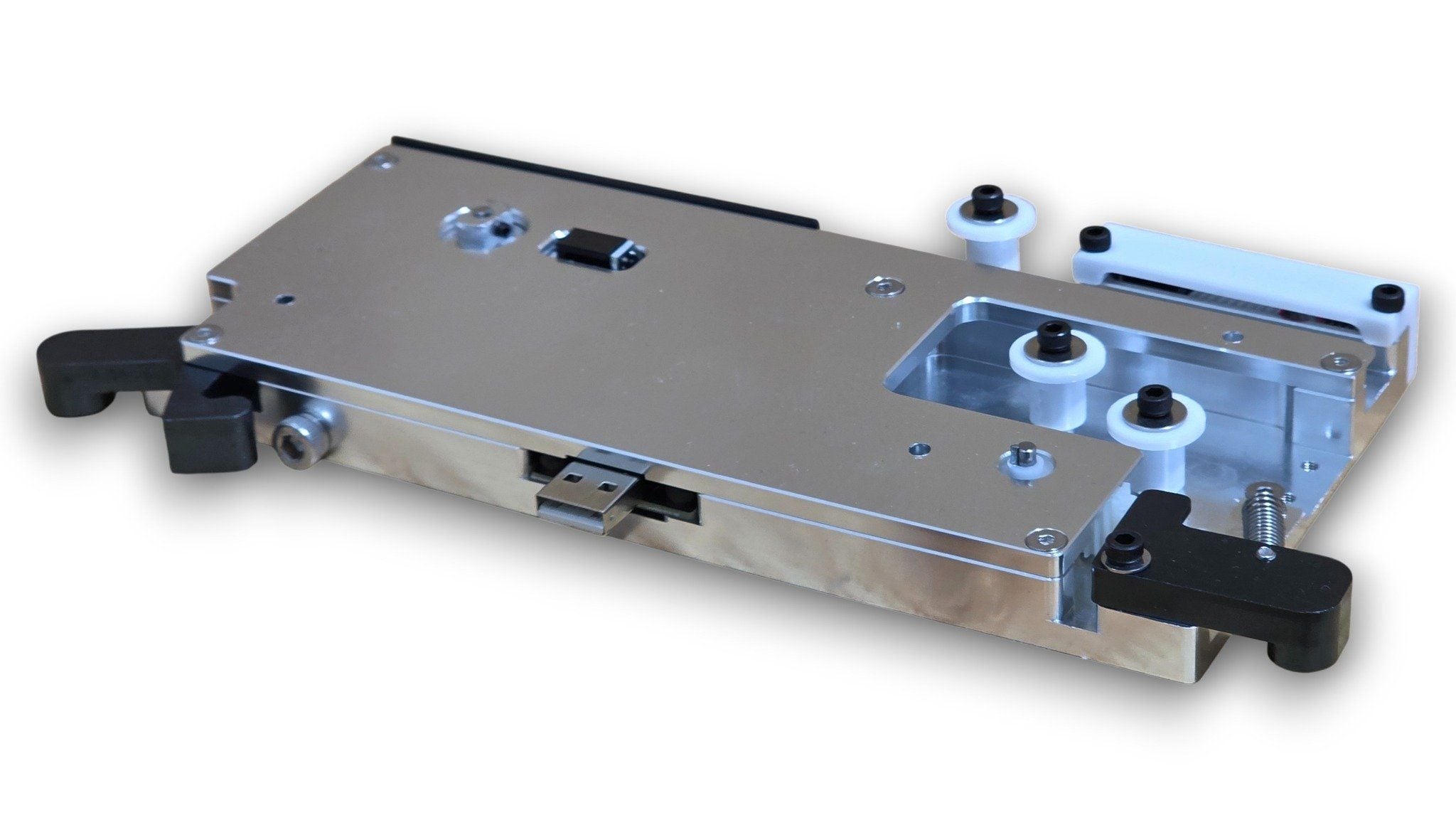

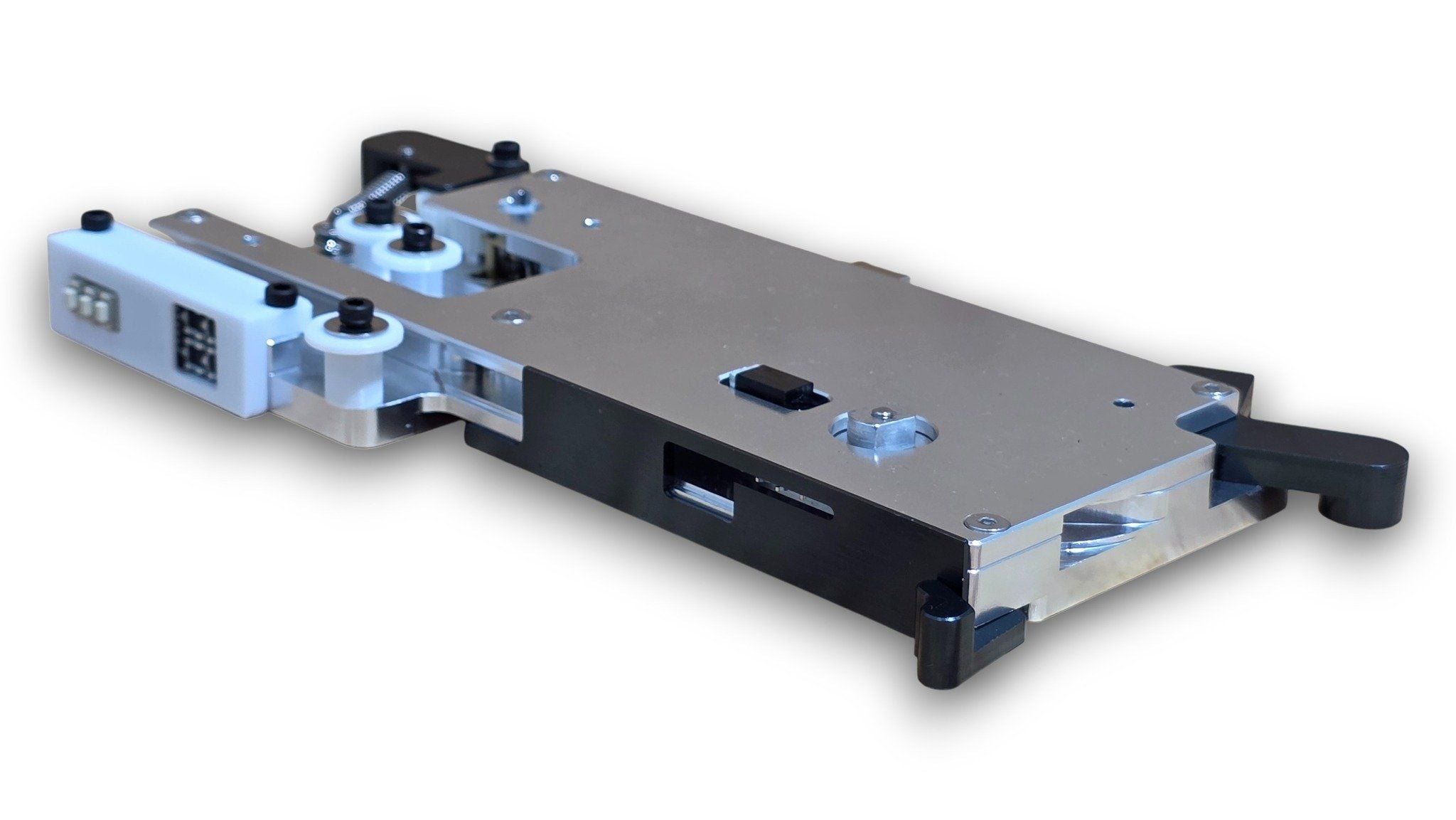

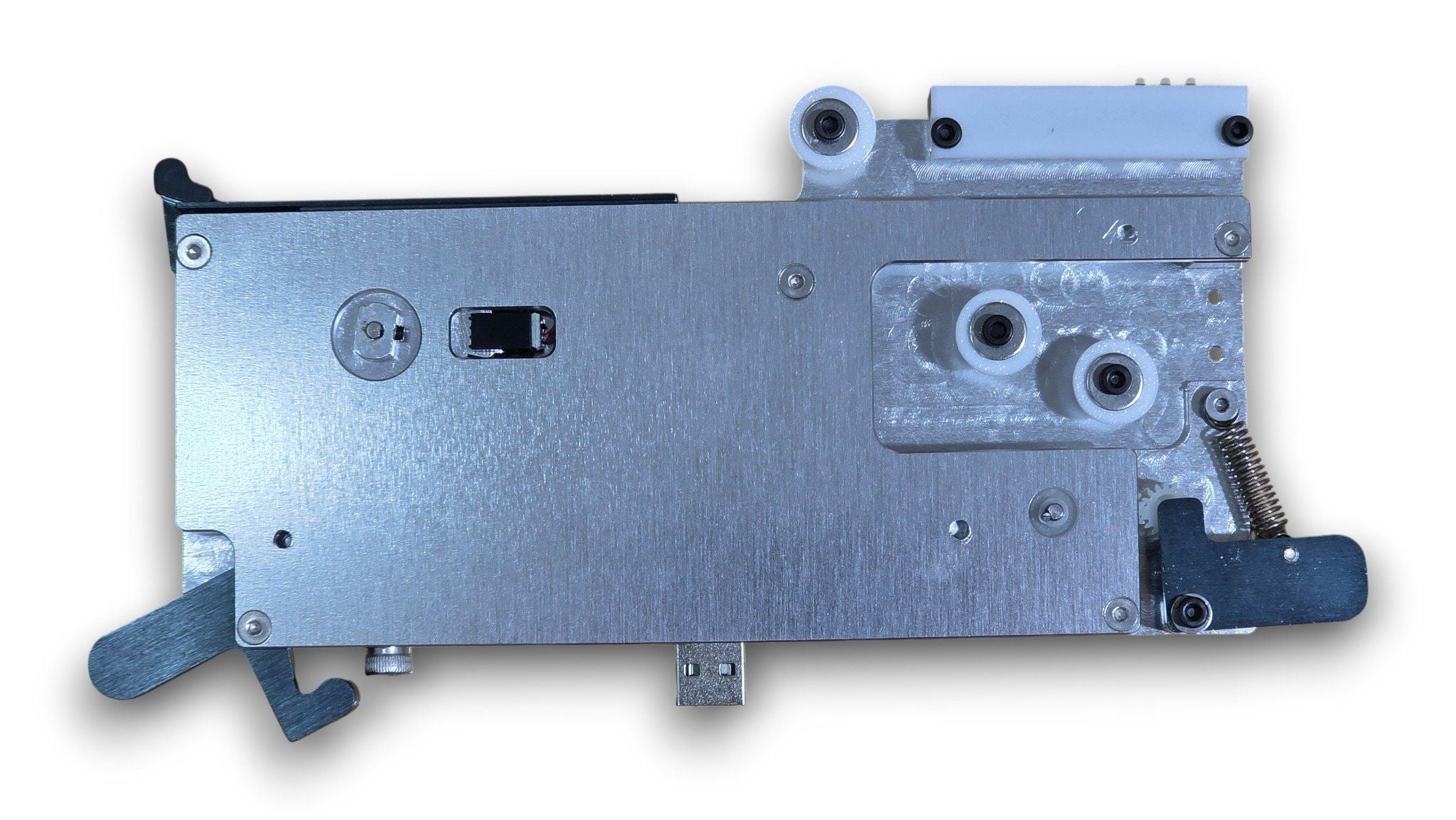

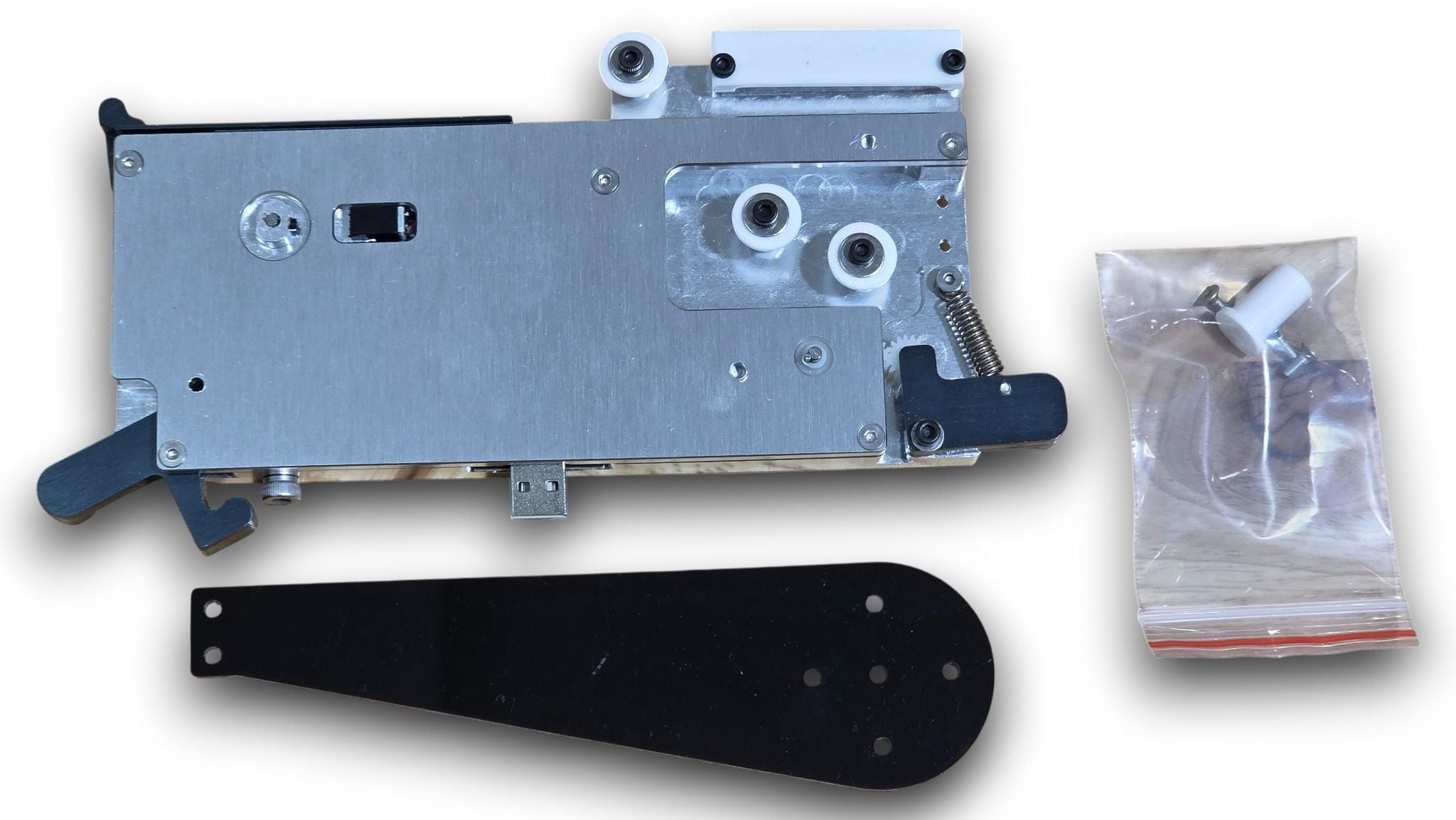

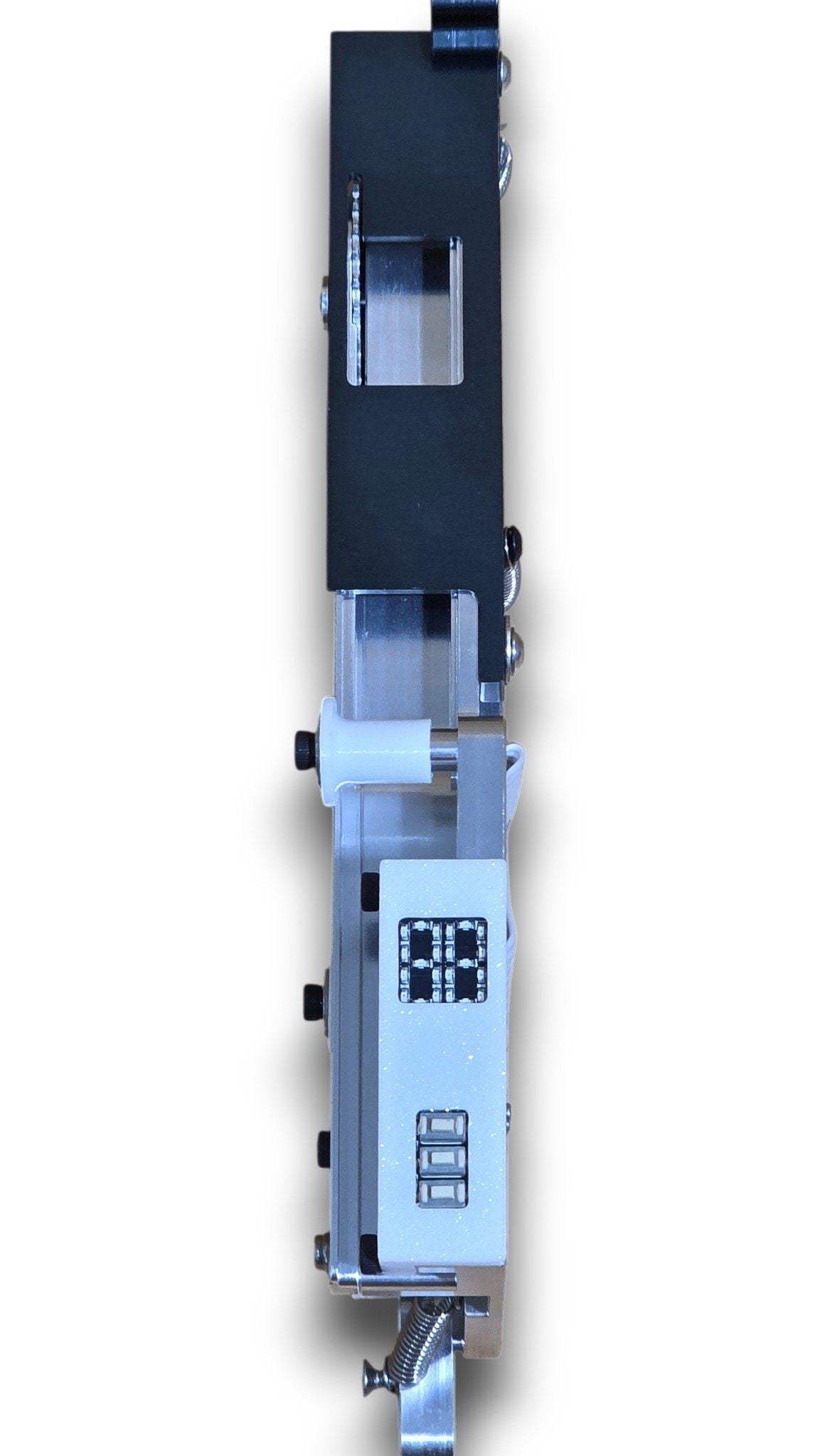

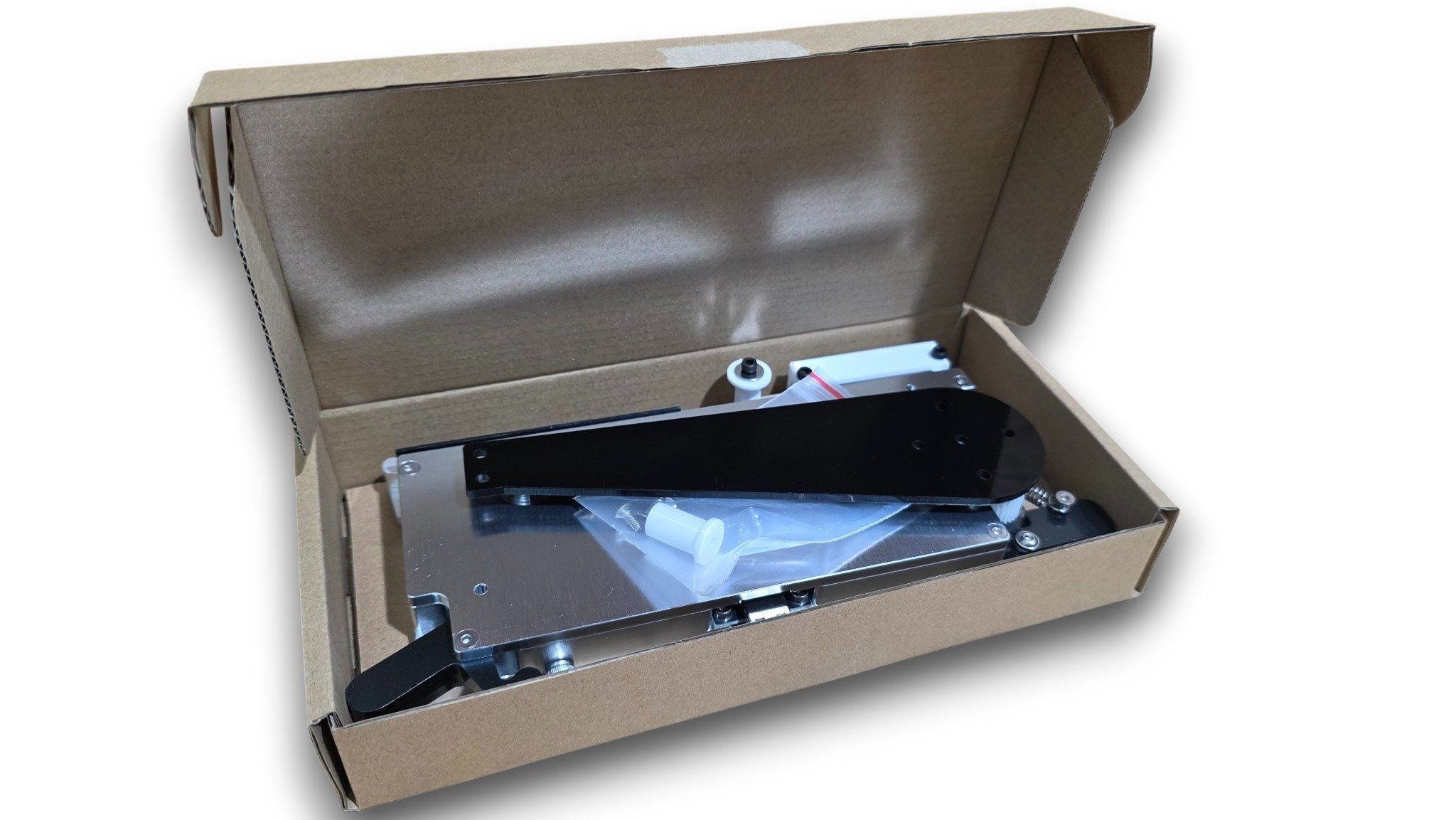

AF FEEDER 8MM (AF8)

Product code: AF8 Status: In stock Brand: Other

Price: $60

Quantity:

Leave your information, we will contact you!
contact.afarco@gmail.com

AF FEEDER V2 What's special?

Simple operation with OpenPnP via RS485 communication
Save time during use thanks to quick assembly and disassembly structure
Machined by CNC aluminum alloy, with absolute precision
Supports smallest size 0402, works well with paper and plastic component rolls thanks to the compression mechanism
Intelligent control circuit with optical sensor, precise position control algorithm

Repeatability

Optical position sensor with custom motor with torque up to 0.2Nm, providing precision and smoothness

Simple parameter settings

With push button and 7-segment LED display, you can set address from 1 to 99
and operation step from 2, 4, 8, 12, 16, 24

Installation and setup

Mechanical design with automatic locking and positioning pins, simple and sturdy installation. Ensures no displacement during operation.
Using "ReferenceAutoFeeder" in OpenPnP with only 1 Pick command

Unique reading design

With completely sealed structure, minimizing components falling into the Feeder

Actual videos during operation

How do I order online?

AFARCO is pleased to support customers to order online in one of the following ways:
- Send order email to address: contact.afarco@gmail.com
- WhatsApp: +84 989 941 355

What is the maximum PCB size?

AFARCO Mini PnP : 340x540mm
AFARCO iRON PnP: 300x300mm

How much CPH does it operate at?

Vision ON: 1500 CPH Vision OFF: 2200 CPH

What control board does the machine use?

We use Smoothie platform which runs on MCU NXP LPC1769 clocked at 120Mhz

Active component size?

0402 Passives
0.4mm Pitch ICs
0.5mm Pitch BGA
