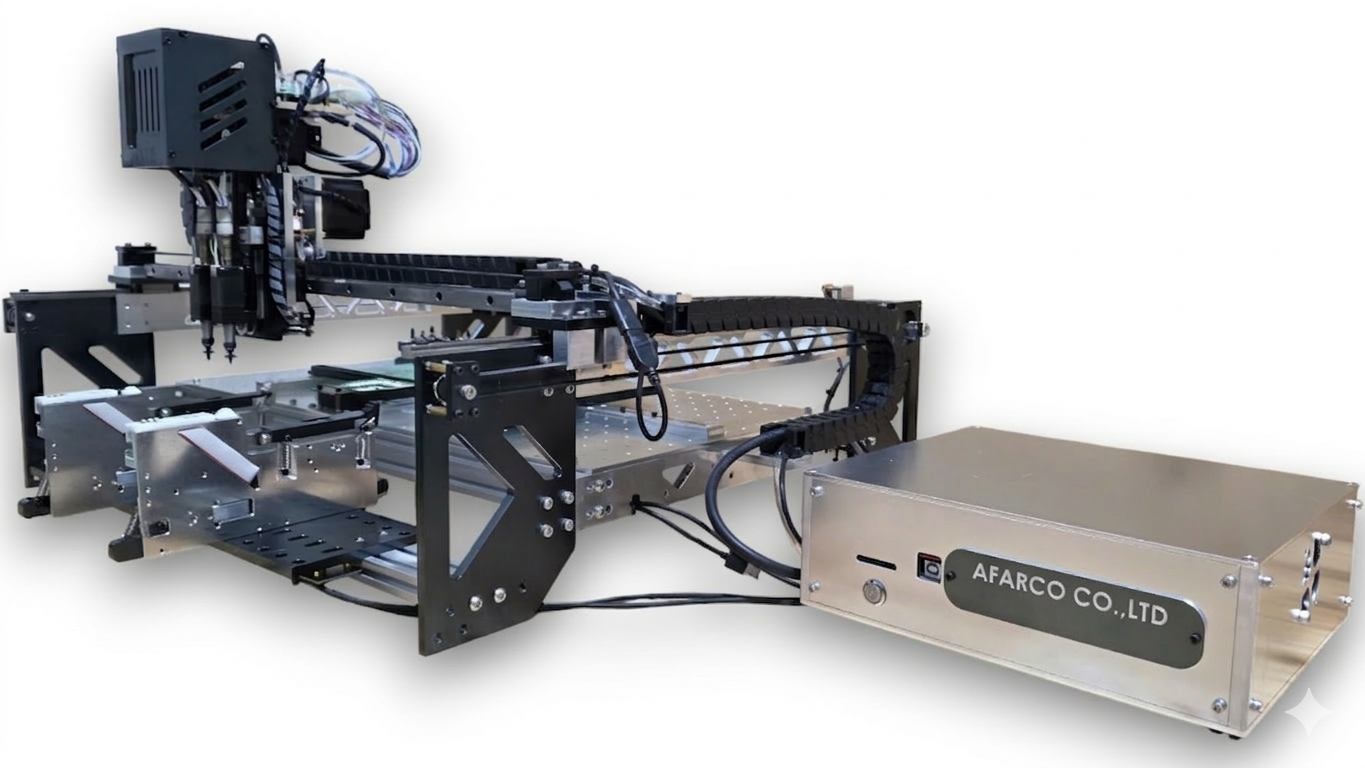

AFARCO PNP V3.2

Product code: AFARCO PNP V3.2 Status: In stock Brand: Other

Price: $1,968

Quantity:

Leave your information, we will contact you!
contact.afarco@gmail.com

What's in the box:

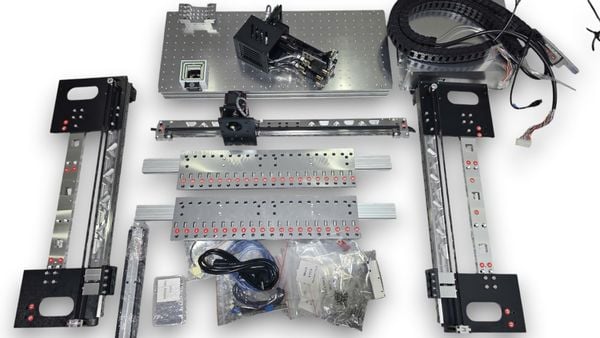

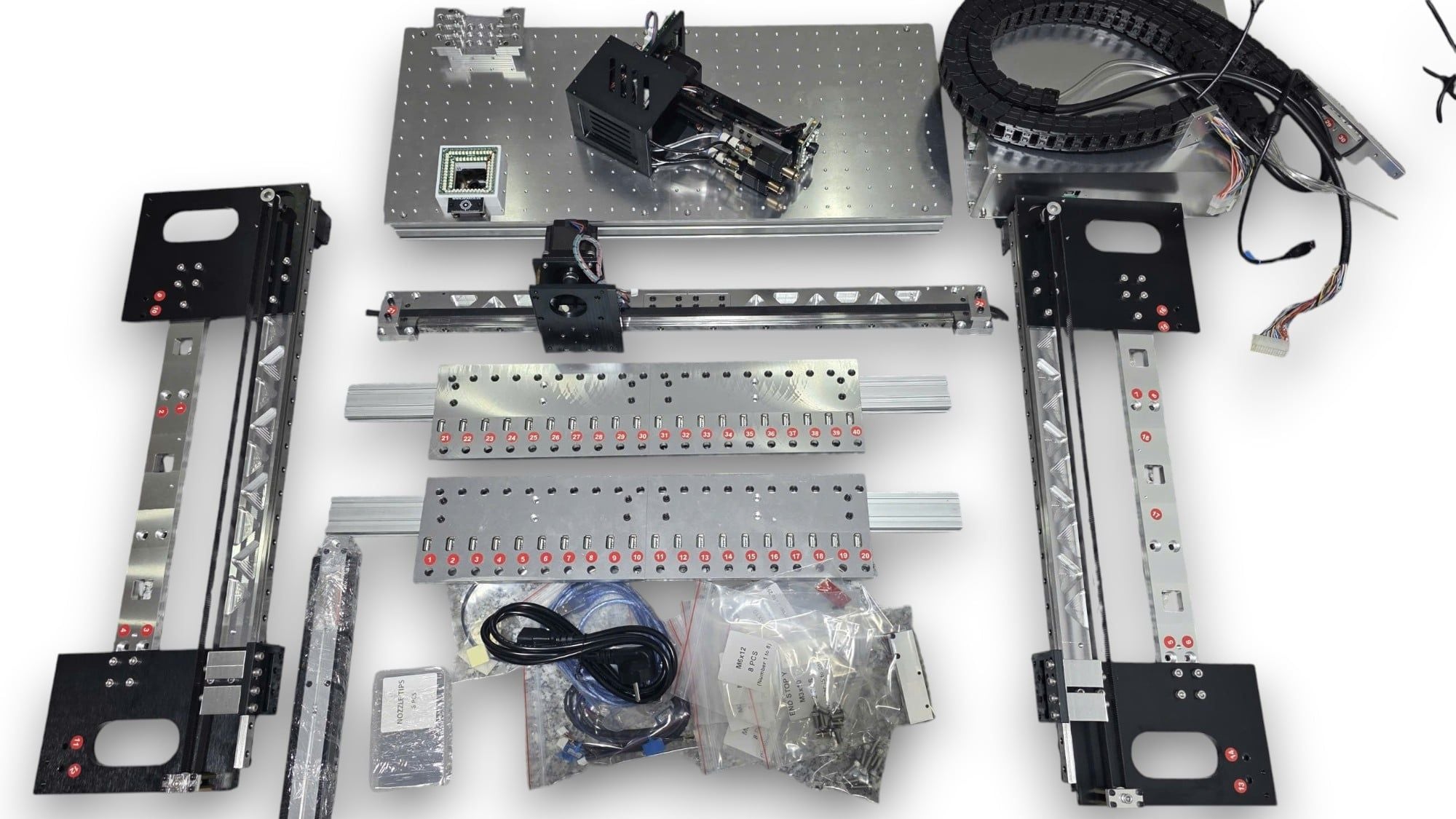

AFARCO PNP V3.2 Full KIT
Nozzle Tips Set: 6 PCS (065, 140, 400)
USB Tool (Storing OpenPnP configuration files, installing software, and some supporting tools)

The parts will be disassembled, to reduce shipping costs

What Makes AFARCO Mini PnP Superior to Other Products (LumenPnP, PandaPlacer...):

Accuracy: Accuracy down to 0201 and BGA 0.5mm size components

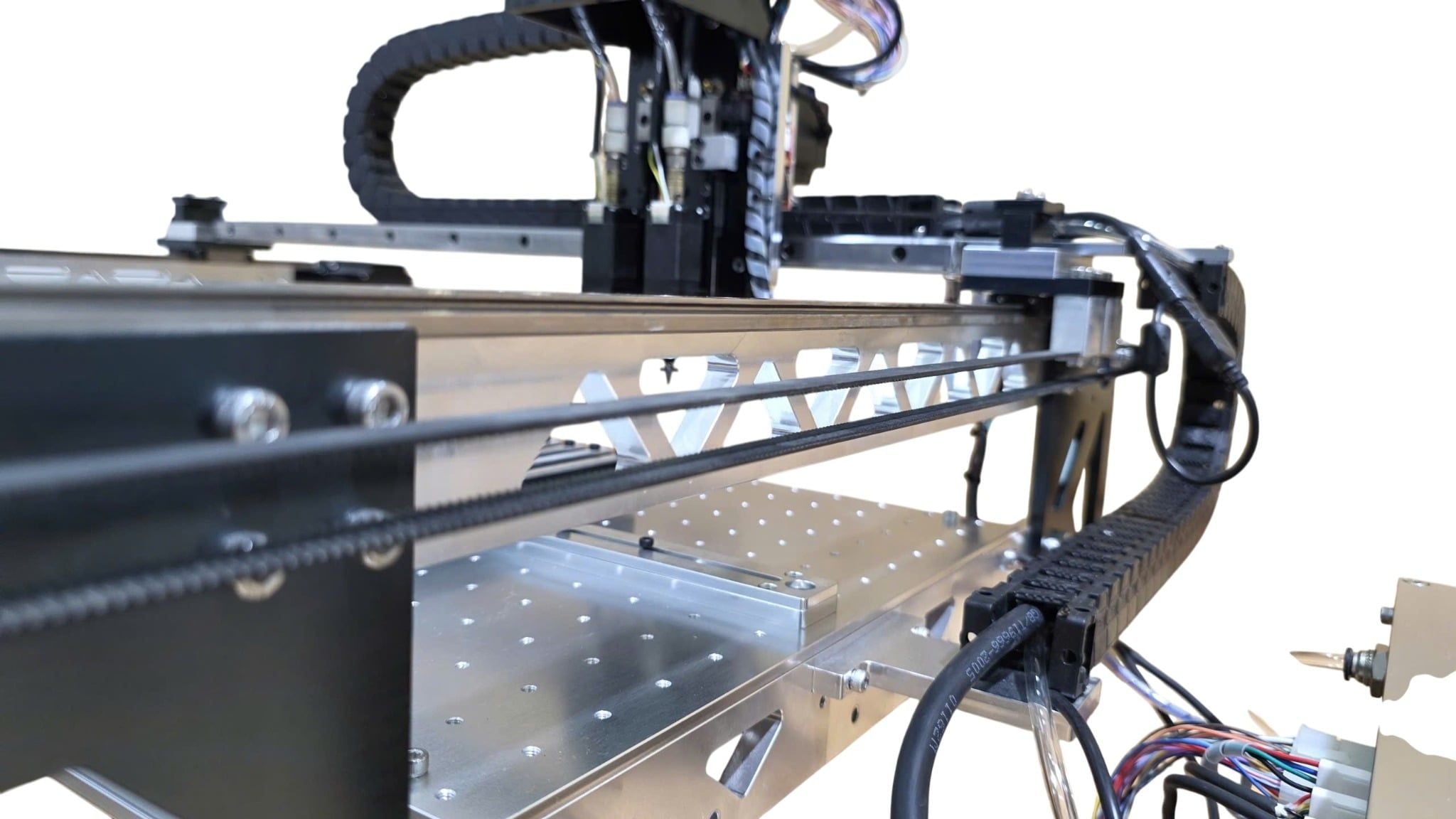

Reliability:Metal frame, providing precision in mechanics, simple, easy to install
Open software: Native OpenPnP software, updated and supported by the community
Plug and Play: Mechanical position linkage, only 10 minutes to assemble and no alignment required

Specifications

	AFARCO PNP V3.2

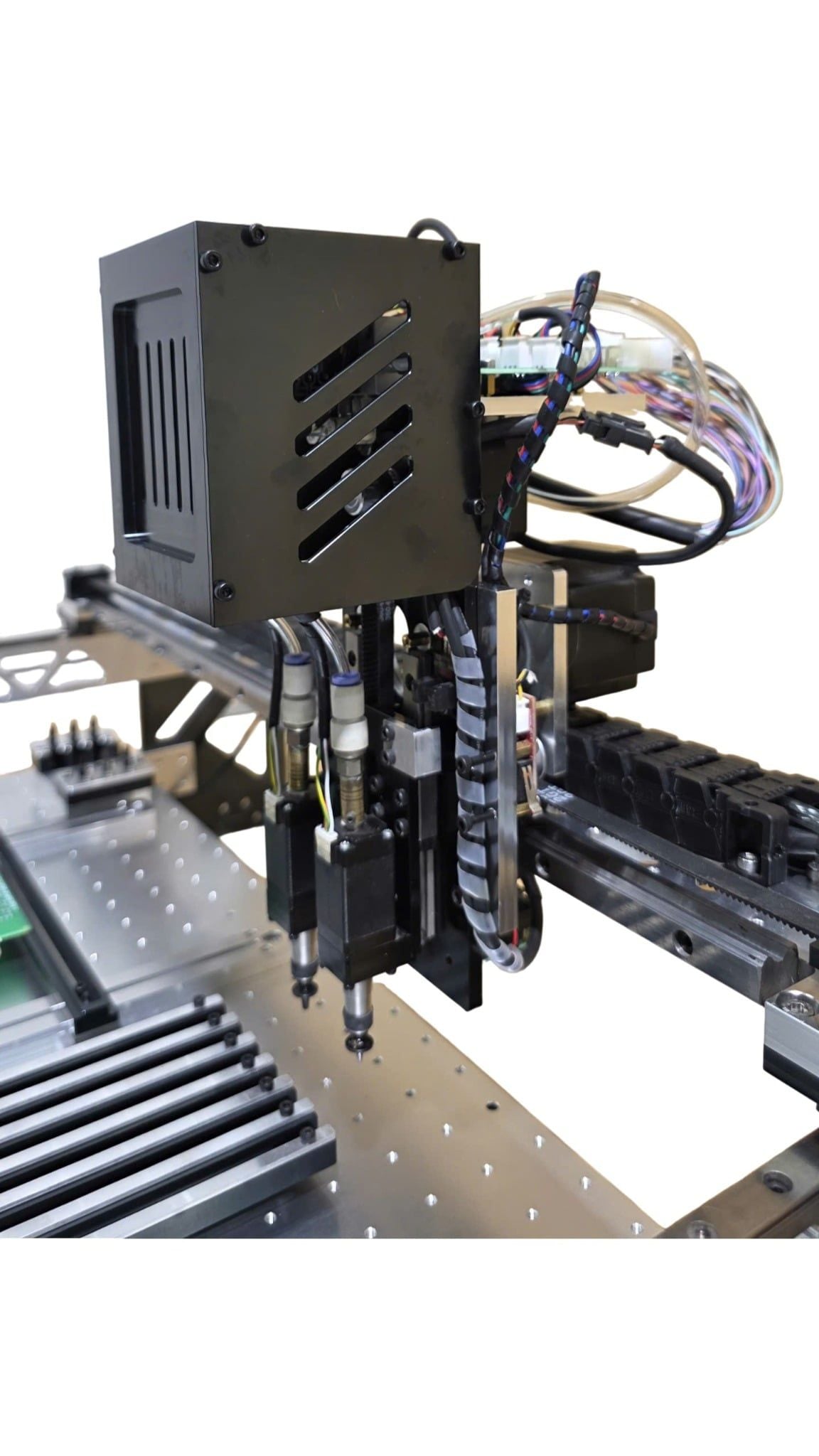

Machine Style	2 Heads
Placement Rate	Vision ON: 1600 CPH \| Vision OFF: 2200 CPH
Maximum PCB Size	280 x 550 (mm)

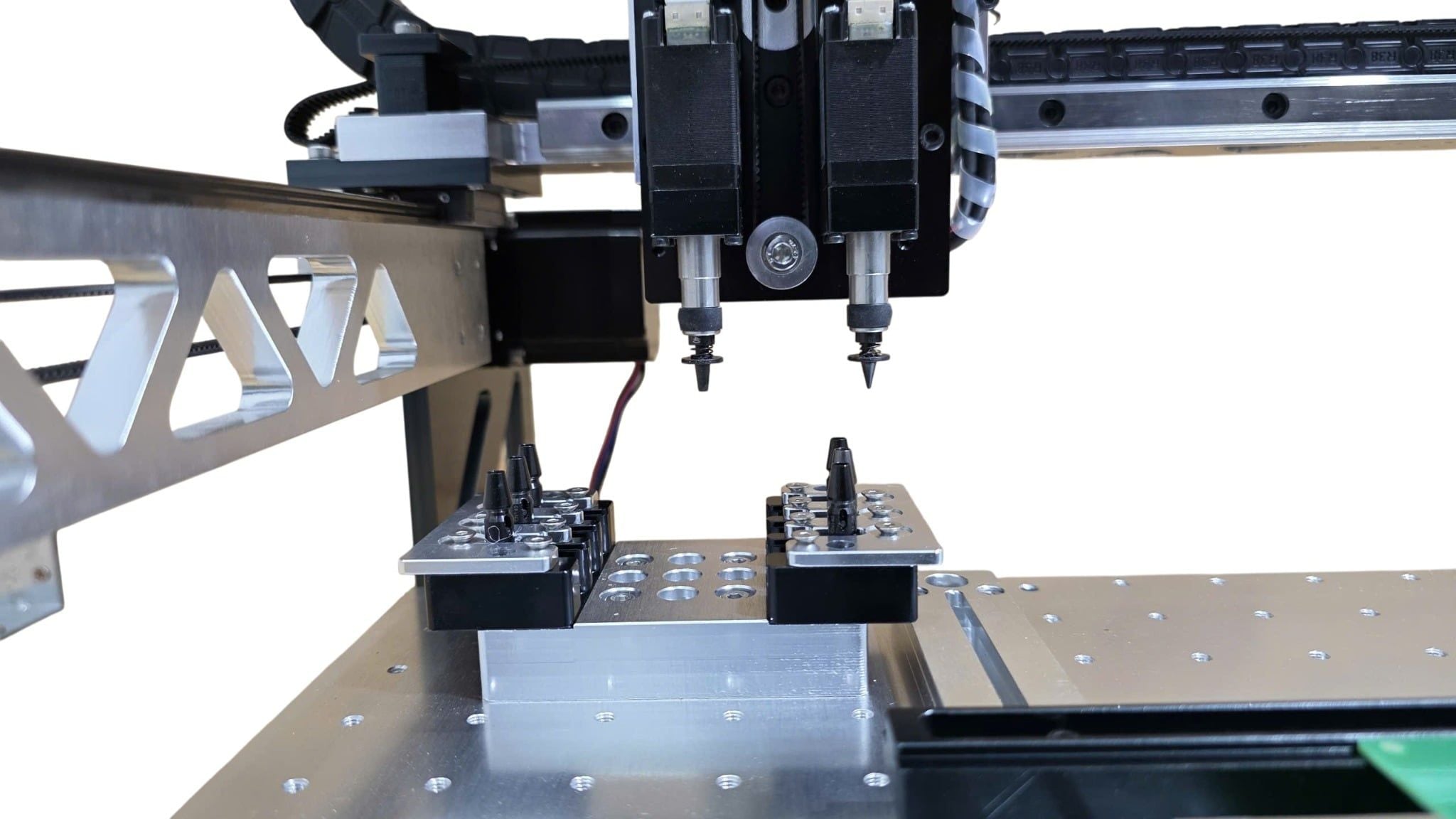

Nozzle Change Capacity	6 Nozzles ( 3 Left & 3 Right )
Nozzle Type	Samsung CP45

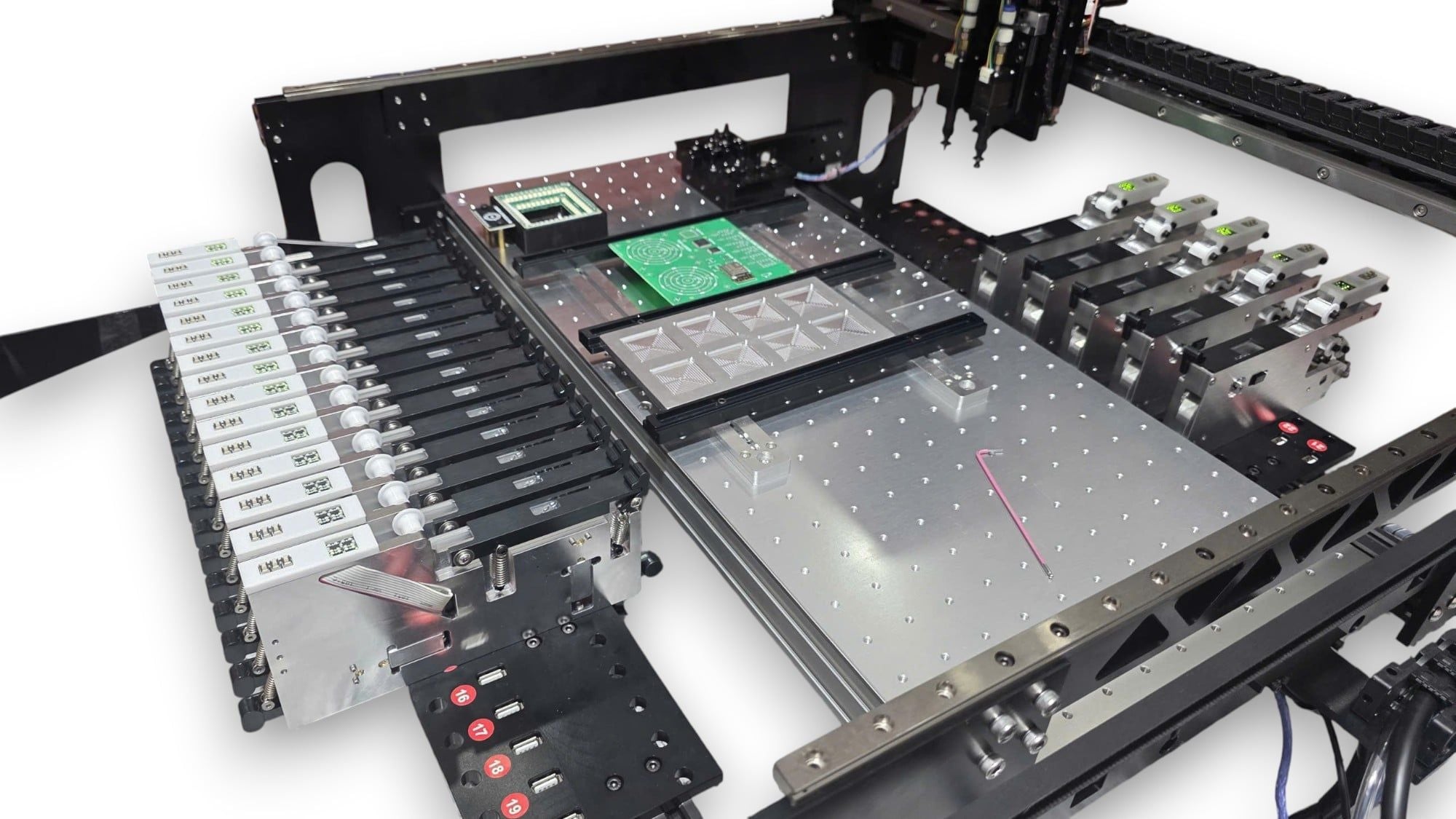

Feeder Type	40 Slots AF Feeder (8mm, 12mm, 16mm)
	( 20 Front & 20 Rear )
	Strips Feeder
	Tray Feeder
Component Compatibility	Minimum part size: 0201 \| Lead Pitch: 0.4mm
Component Compatibility	*Largest Size: 2828(mm)** \| Part Hight: 20(mm)
Rotation Nozzle	-+360
X/Y/Z Axis Travel	X 600mm \| Y 480mm \| Z 38mm
Vaccum Pump	-85Kpa \| 24VDC \| 24W
Software	OpenPnP Original

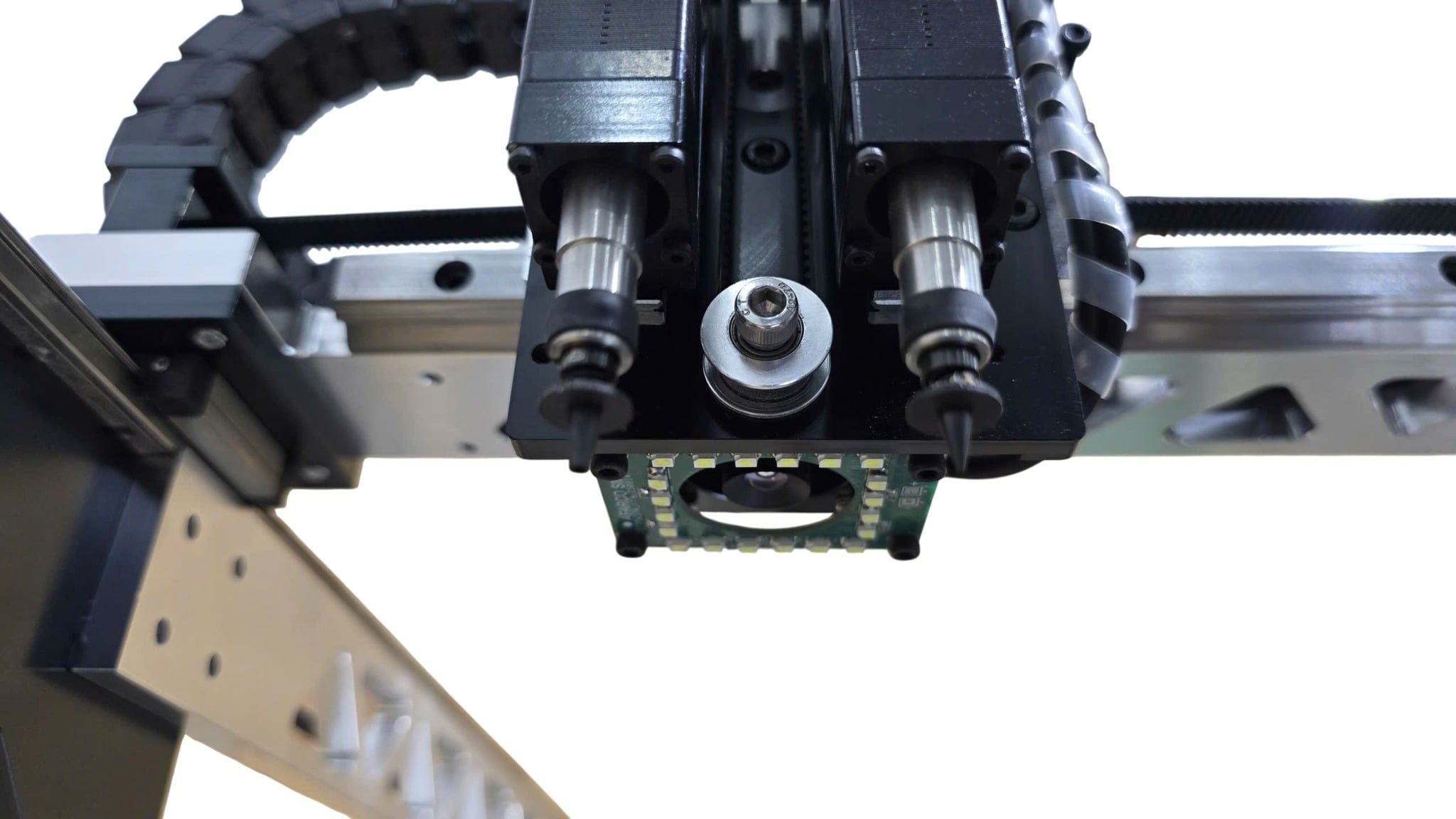

Camera Vision	1 HD Camera TOP, 1 HD Camera BOT
Power	200W\|85VAC-250VAC 50/60Hz
External Dimensions (mm)	Machine Size: 750(L)x650(W)x450(H)

Detailed information about the motion control panel:

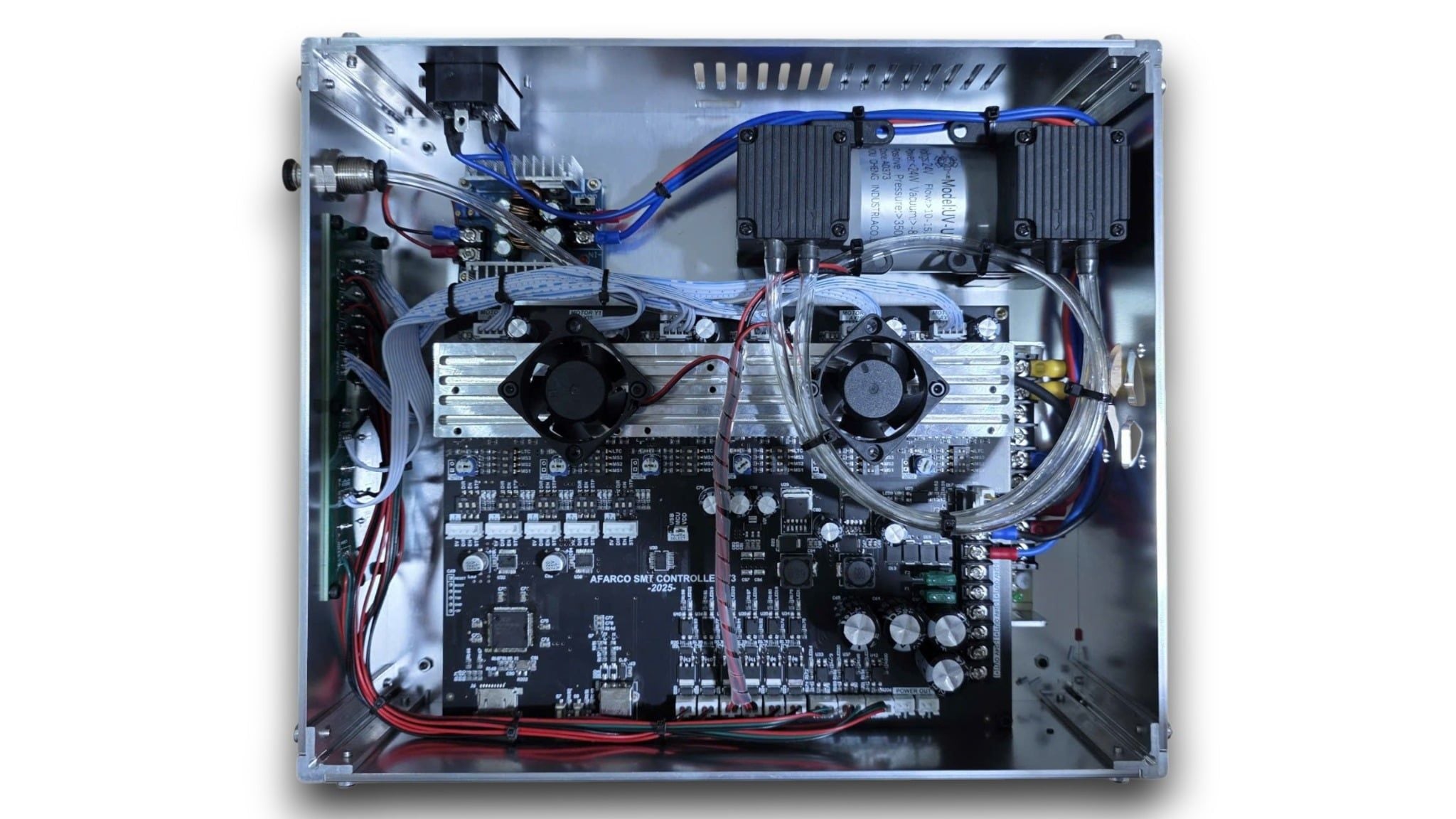

Using MCU LPC1769 High-performance microcontroller. Maximum operating frequency of 120MHz, with up to 512KB Flash and 64KB SRAM memory.
Operates on the Smoothie platform.
The TB6600 high-performance stepper motor controller enables high-speed axis movement.
The control box is designed to be detachable, making replacement and maintenance easy.
The Meanwell LSR350 AC-DC power converter (24VDC-14.6A) offers an optional 110-240VAC input voltage, compliant with US, EU, UK, AU, and other standards.
This vacuum pump has a power of 24W, reaching a pressure of -85Kpa, and operates powerfully and quietly.
Built on the foundation of native OpenPnP, it always receives the latest updates from the OpenPnP community.

AF Feeder V2: Fully automatic feeder for AFARCO PnP V3.2

Simple operation with OpenPnP via RS485 communication
Save time during use thanks to quick assembly and disassembly structure
Machined by CNC aluminum alloy, with absolute precision
Supports smallest size 0201, works well with paper and plastic component rolls thanks to the compression mechanism
Intelligent control circuit with optical sensor, precise position control algorithm

How can AFARCO PNP V3.2 help you with your work?

With an average speed of 1600 cph, the AFARCO PNP V3.2 saves you a lot of time compared to manually picking up and placing components by hand.
You can complete PCBA installation right in your lab, without wasting time waiting.
Ensuring the security and technical requirements of electronic products.

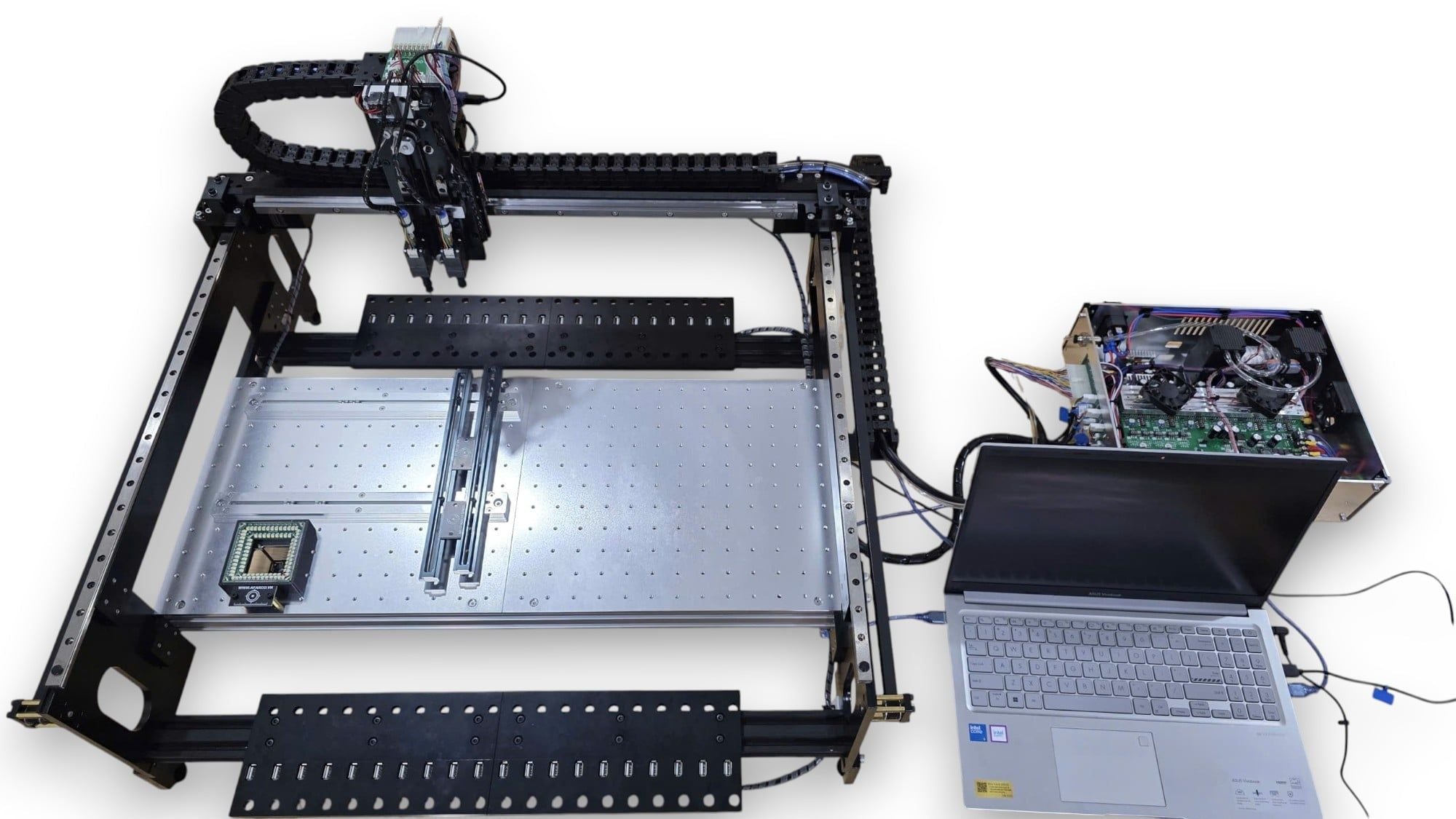

Note: Computer requirements for working with OpenPnP (using the configuration we have set up):
