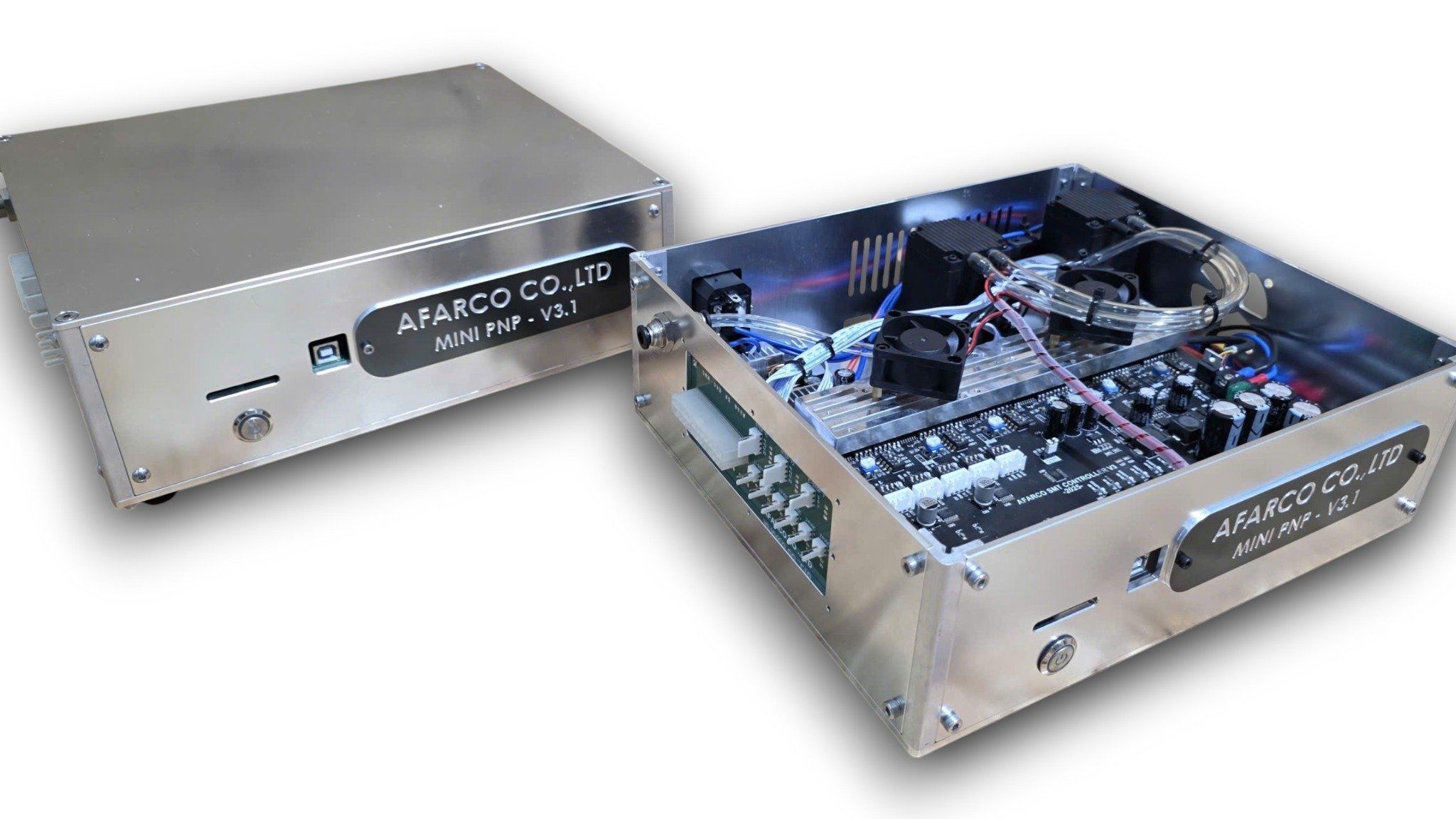

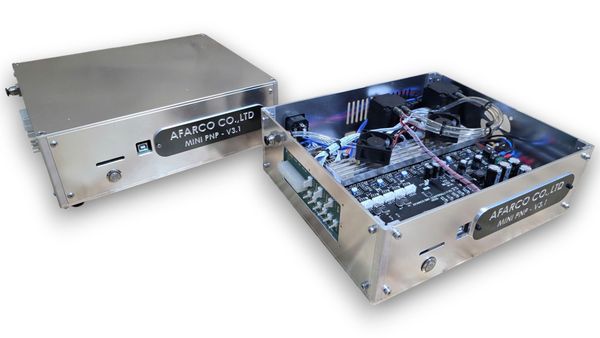

AFARCO Electric Box includes:
Meanwell 24VDC 350W power supply (85VAC-240VAC 50/60Hz)

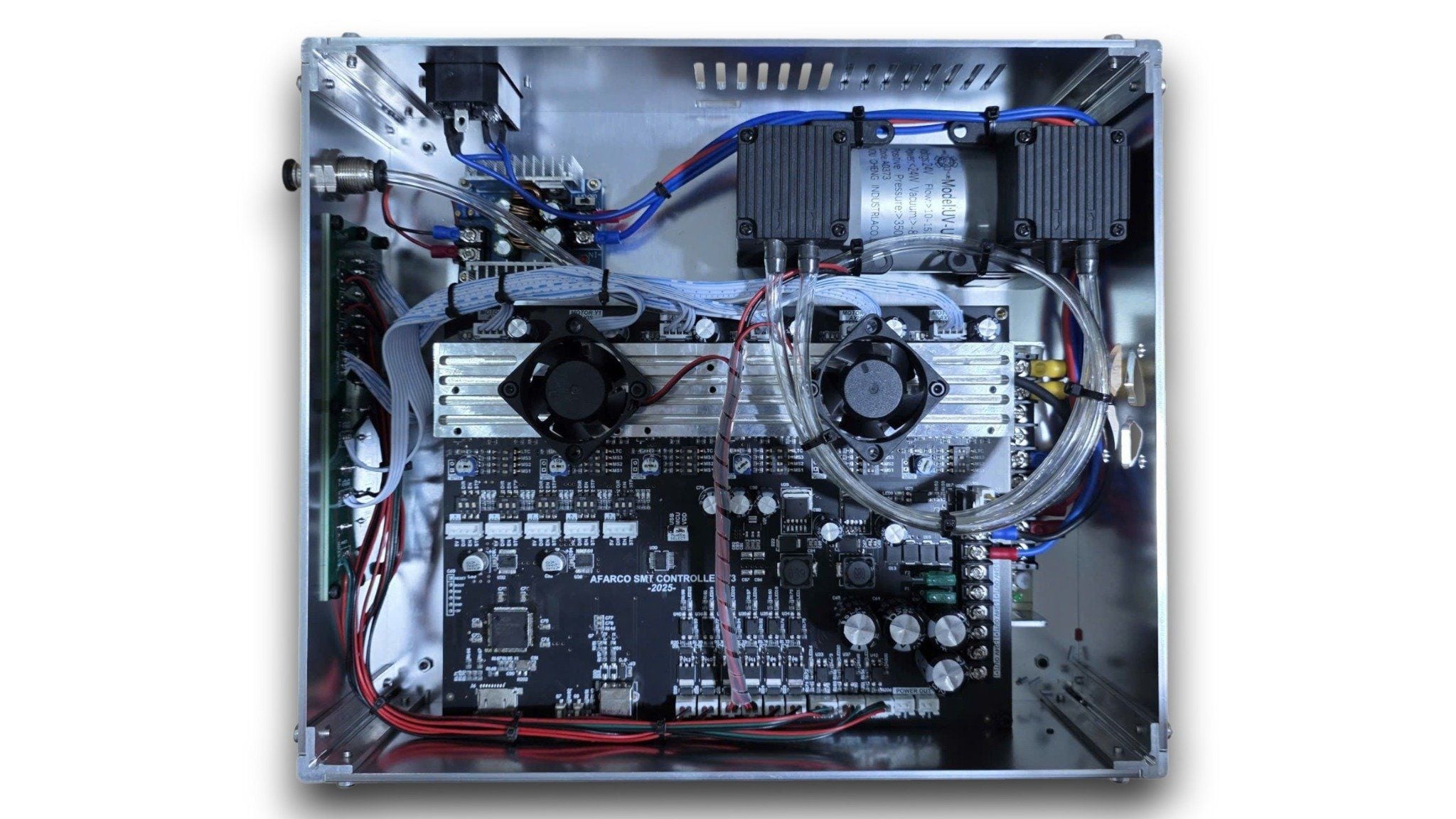

AFARCO PnP V2 control board: 6 Axis (Dual Y), 6 Output (2 Output 12VDC, 4 Output 24VDC), 3 Input, MCU LPC1769 platform Smoothie
24VDC 24W vacuum pump -85Kpa capacity, flow rate 10-15L/min
12V 300W low voltage power supply for AF Feeder
Anodized aluminum box
How do I order online?
AFARCO is pleased to support customers to order online in one of the following ways:
- Send order email to address: contact.afarco@gmail.com
- WhatsApp: +84 989 941 355
- Send order email to address: contact.afarco@gmail.com
- WhatsApp: +84 989 941 355
What is the maximum PCB size?
AFARCO Mini PnP : 340x540mm
AFARCO iRON PnP: 300x300mm
AFARCO iRON PnP: 300x300mm
How much CPH does it operate at?
Vision ON: 1500 CPH
Vision OFF: 2200 CPH
What control board does the machine use?
We use Smoothie platform which runs on MCU NXP LPC1769 clocked at 120Mhz
Active component size?
0402 Passives
0.4mm Pitch ICs
0.5mm Pitch BGA
