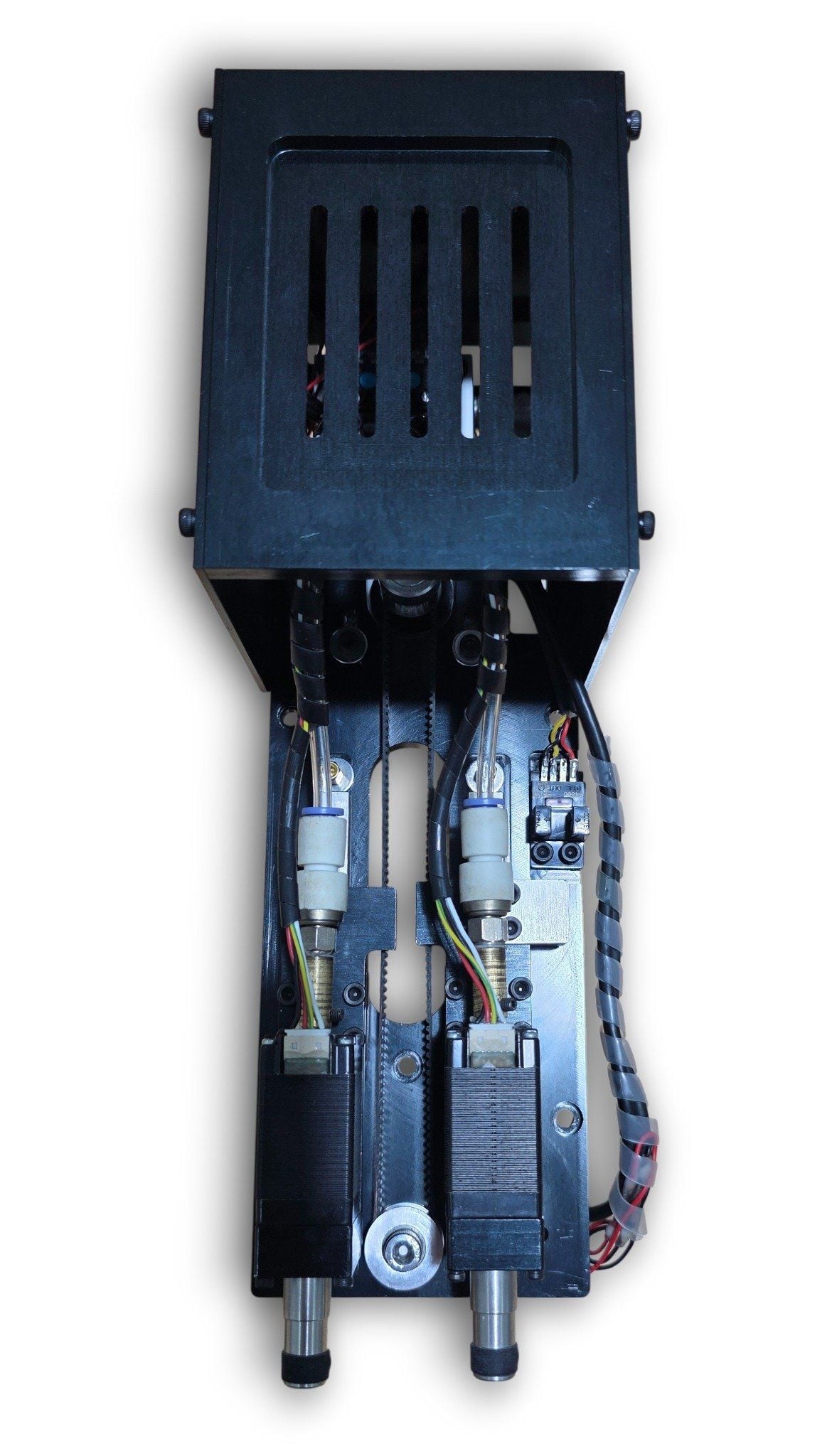

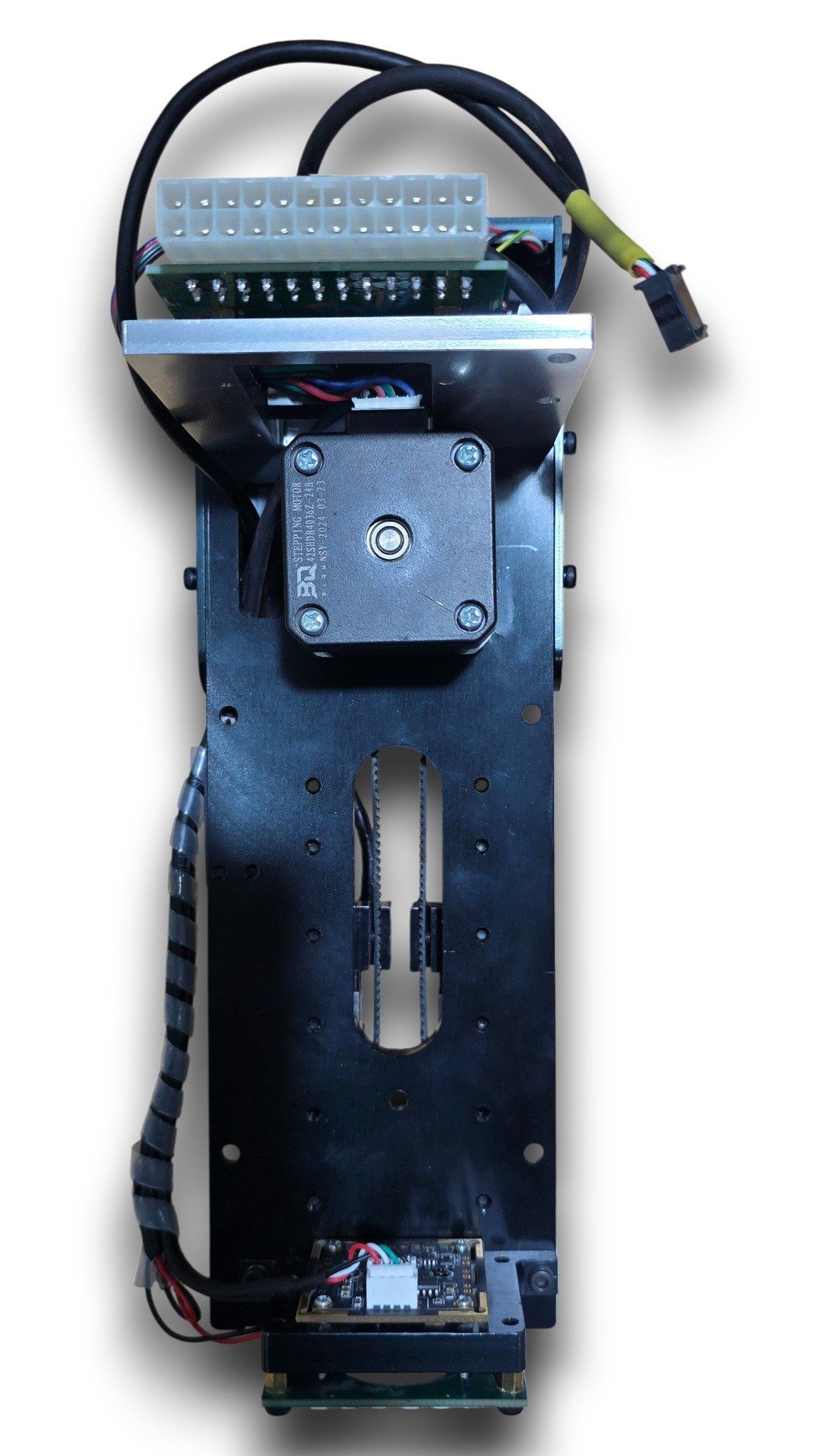

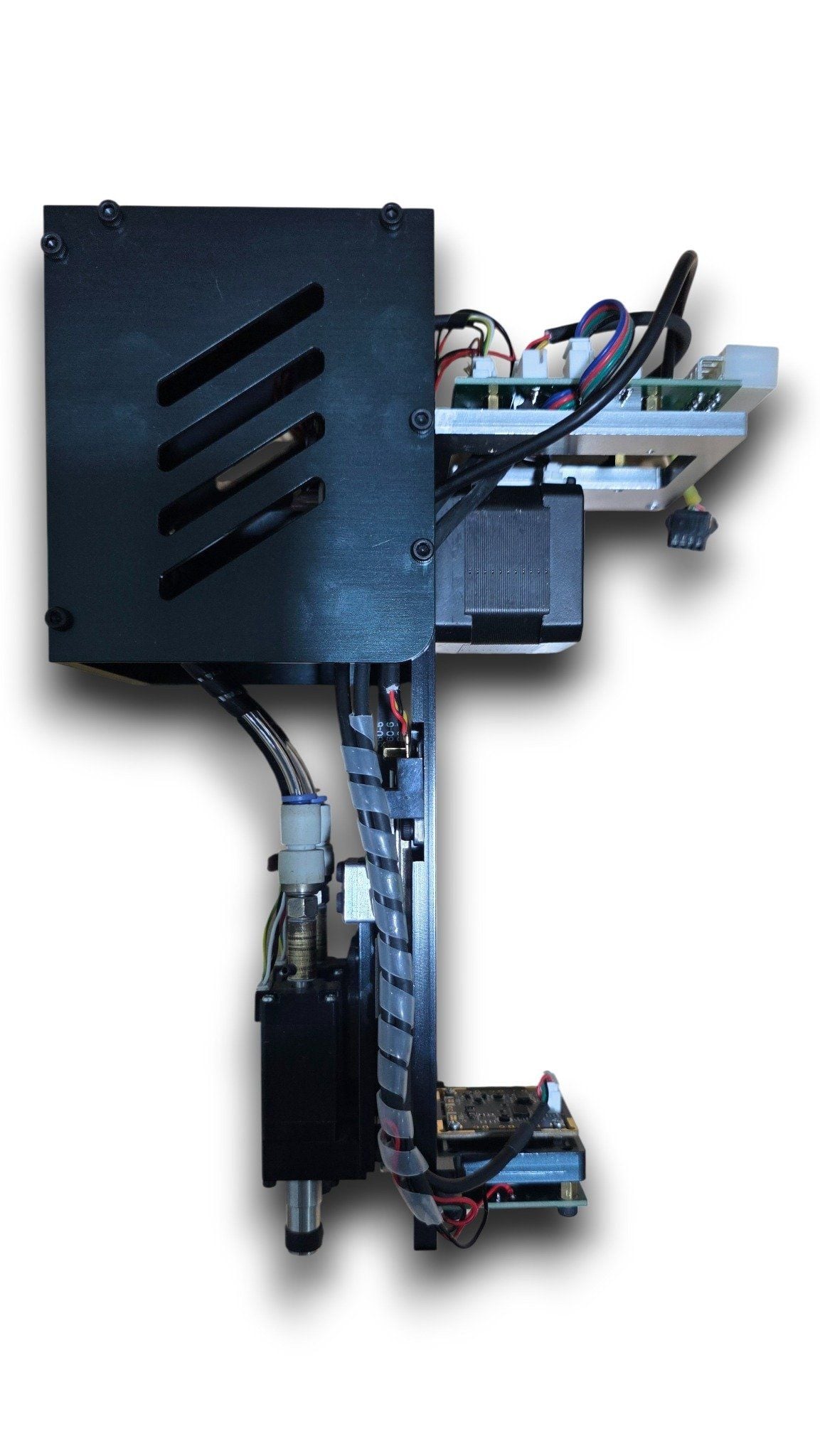

AFARCO Z HEADS V3.1 INCLUDES:
Aluminum alloy 6061 - Anodized Black
Working stroke up to -35mm
2 PCS: Linear Rail Hiwin MGN 9C 100mm for N1-Axis and N2-Axis
2 PCS: Rotation Stepper Motor Nema8
2 PCS: Holder Nozzle Samsung CP45
2 PCS: 4mm 360 Degree Rotating Air Hose Connector
2 PCS: Vacuum valve 24VDC

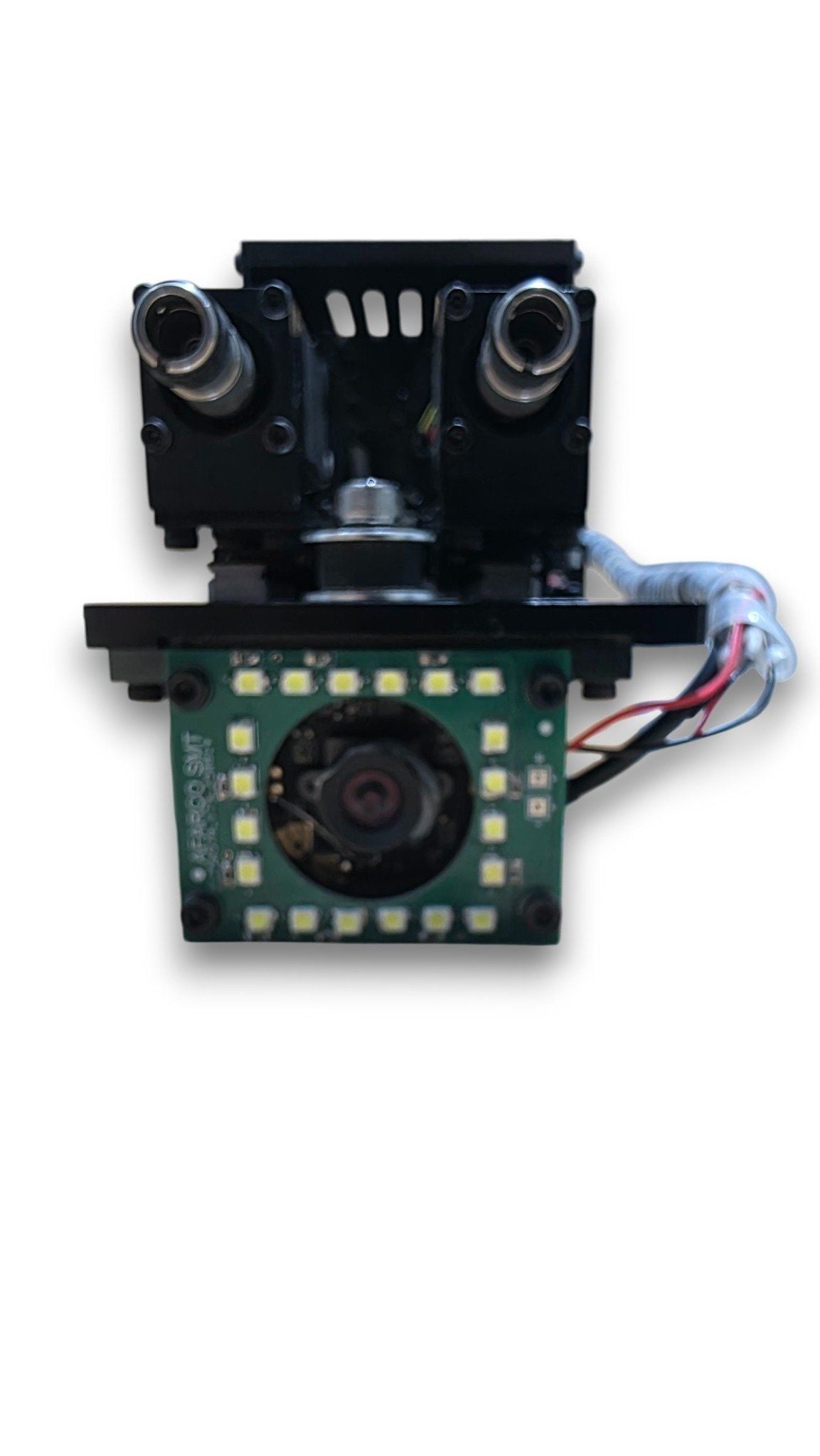

1 PCS: Camera TOP 1080P
1 PCS: Led Camera TOP 12VDC
1 PCS: Stepper Motor Nema 17 for Z Axis
1 PCS: Serial signal circuit board
- 1 PCS: Endstop Z (EE-SX674A)
How do I order online?
AFARCO is pleased to support customers to order online in one of the following ways:
- Send order email to address: contact.afarco@gmail.com
- WhatsApp: +84 989 941 355
- Send order email to address: contact.afarco@gmail.com
- WhatsApp: +84 989 941 355
What is the maximum PCB size?
AFARCO Mini PnP : 340x540mm
AFARCO iRON PnP: 300x300mm
AFARCO iRON PnP: 300x300mm
How much CPH does it operate at?
Vision ON: 1500 CPH
Vision OFF: 2200 CPH
What control board does the machine use?
We use Smoothie platform which runs on MCU NXP LPC1769 clocked at 120Mhz
Active component size?
0402 Passives
0.4mm Pitch ICs
0.5mm Pitch BGA
