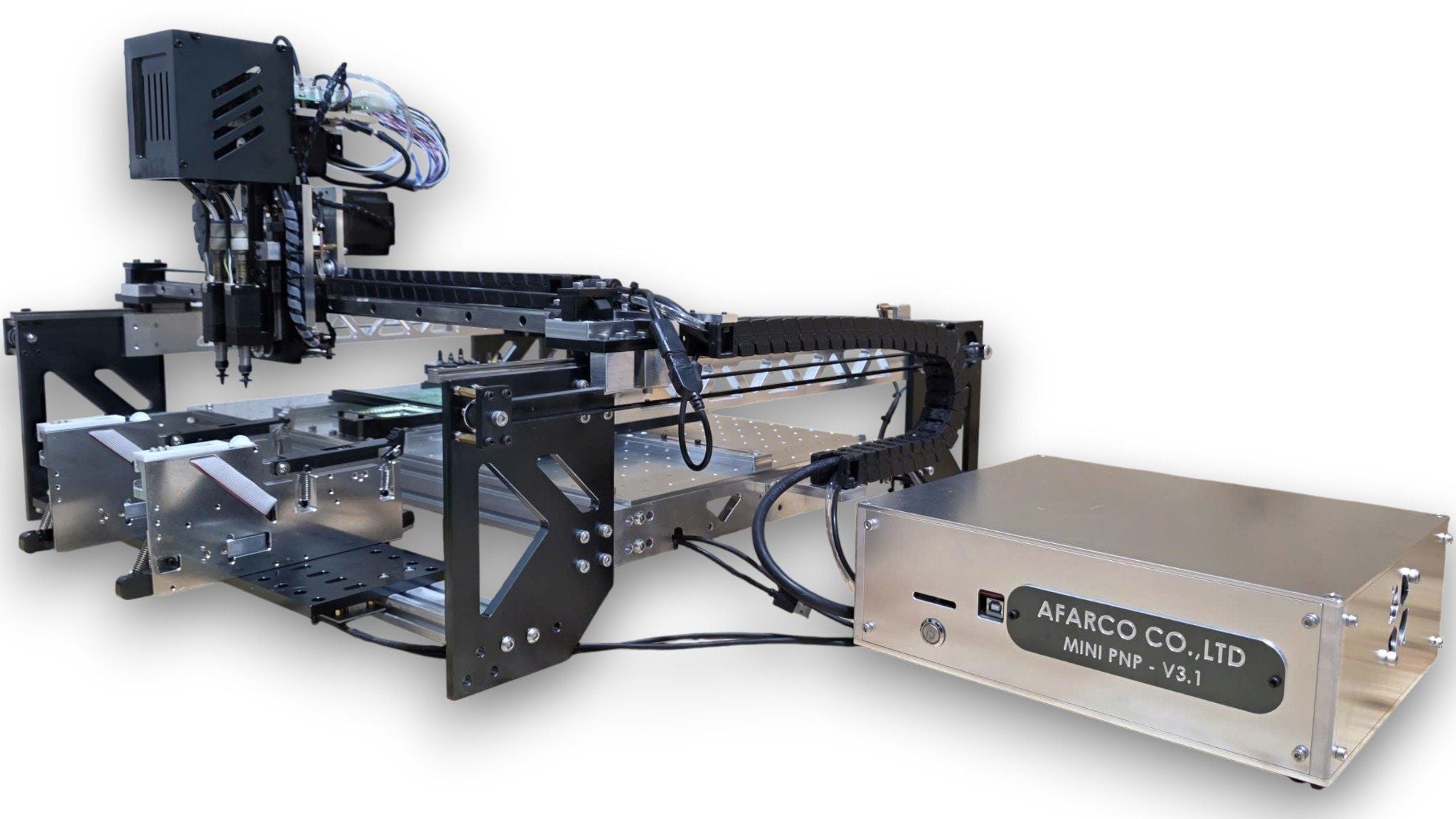

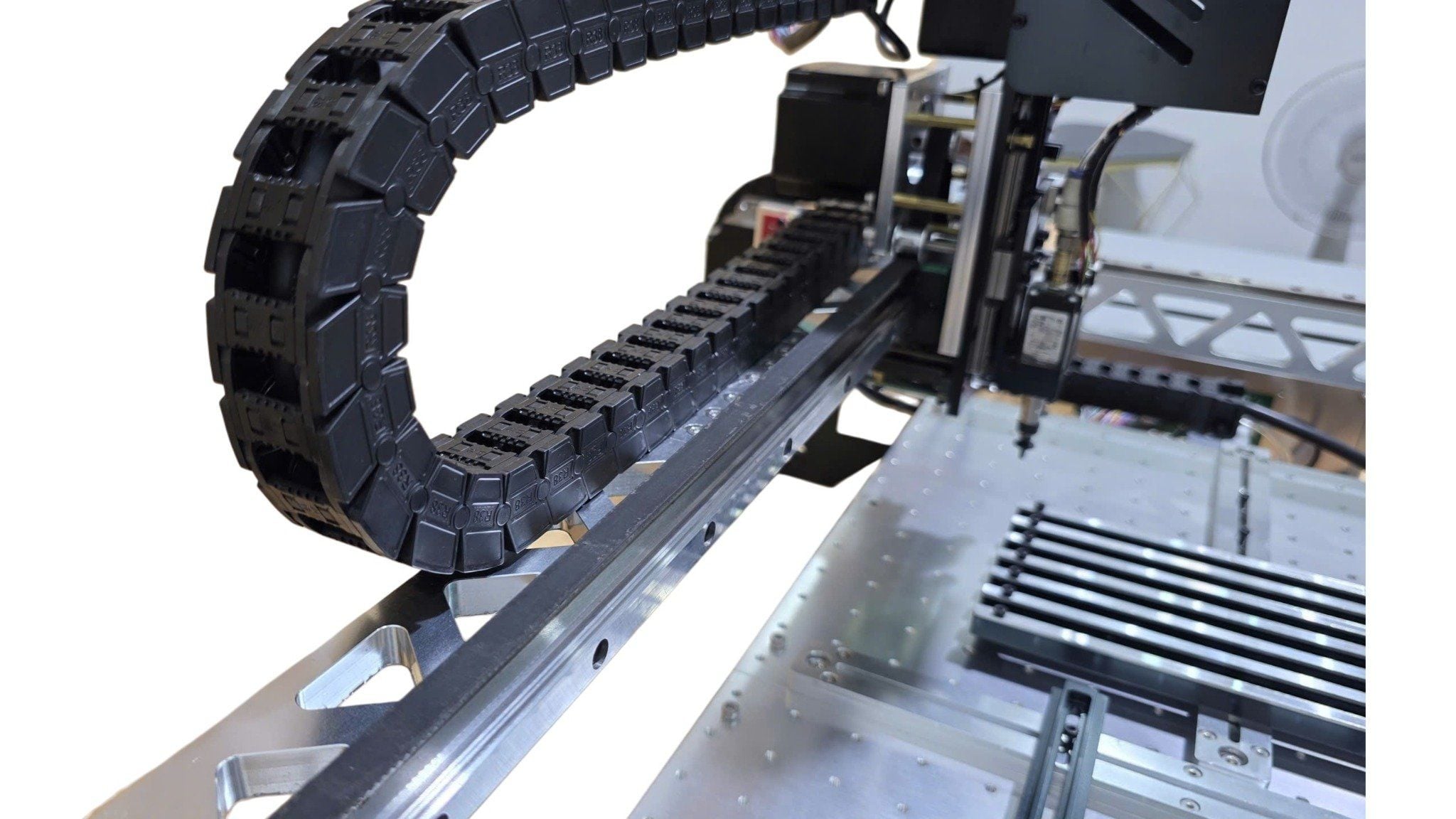

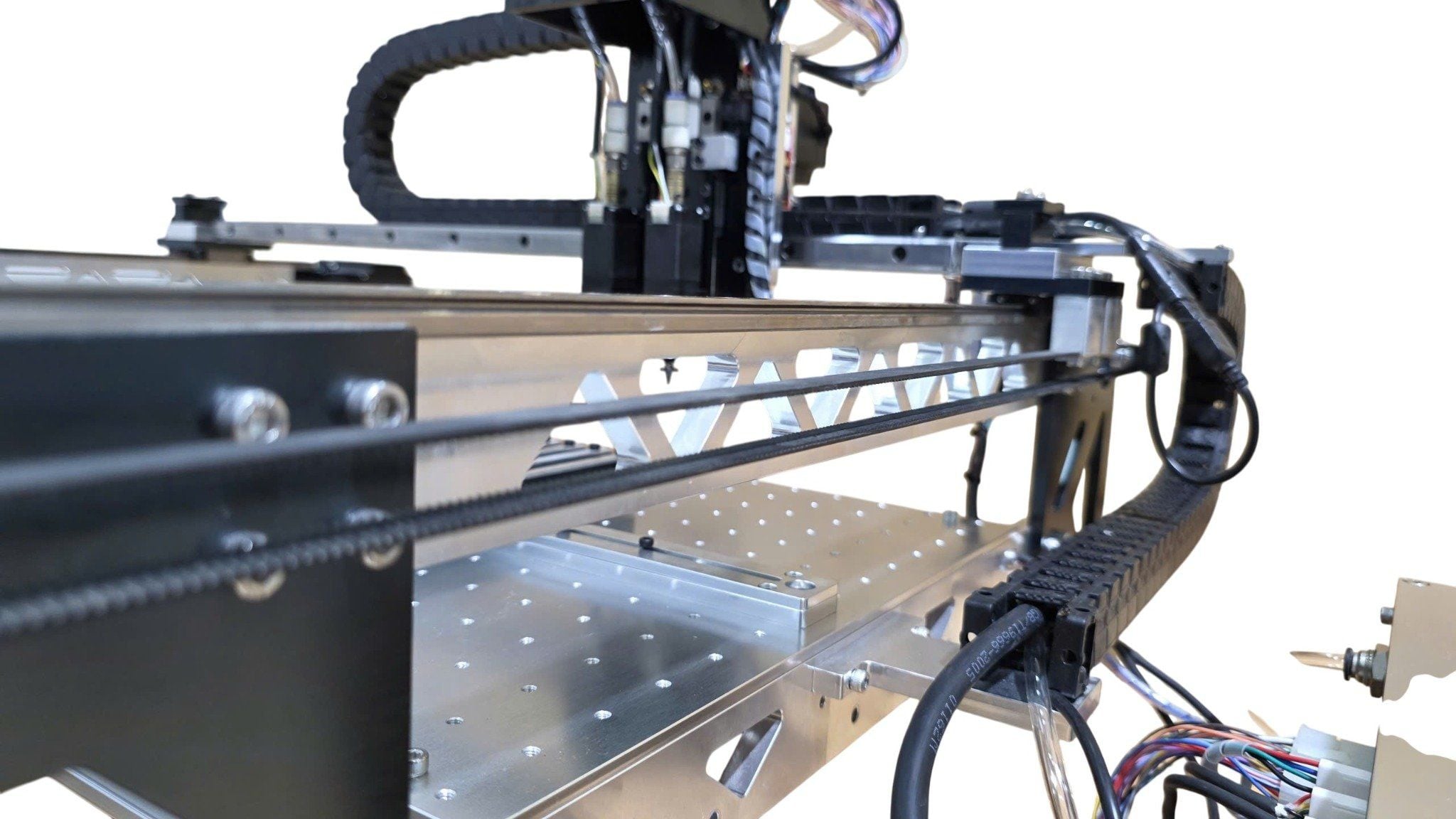

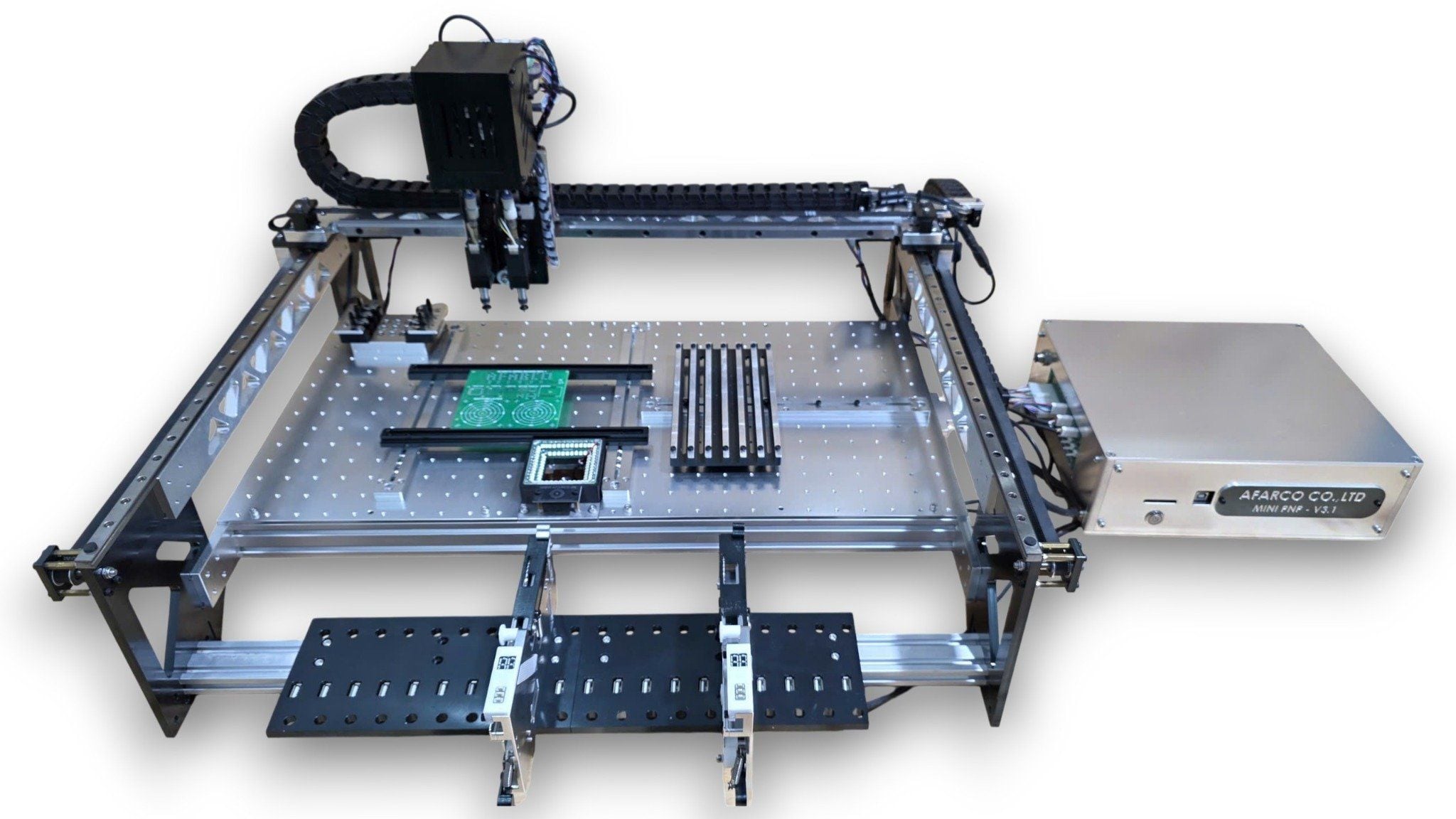

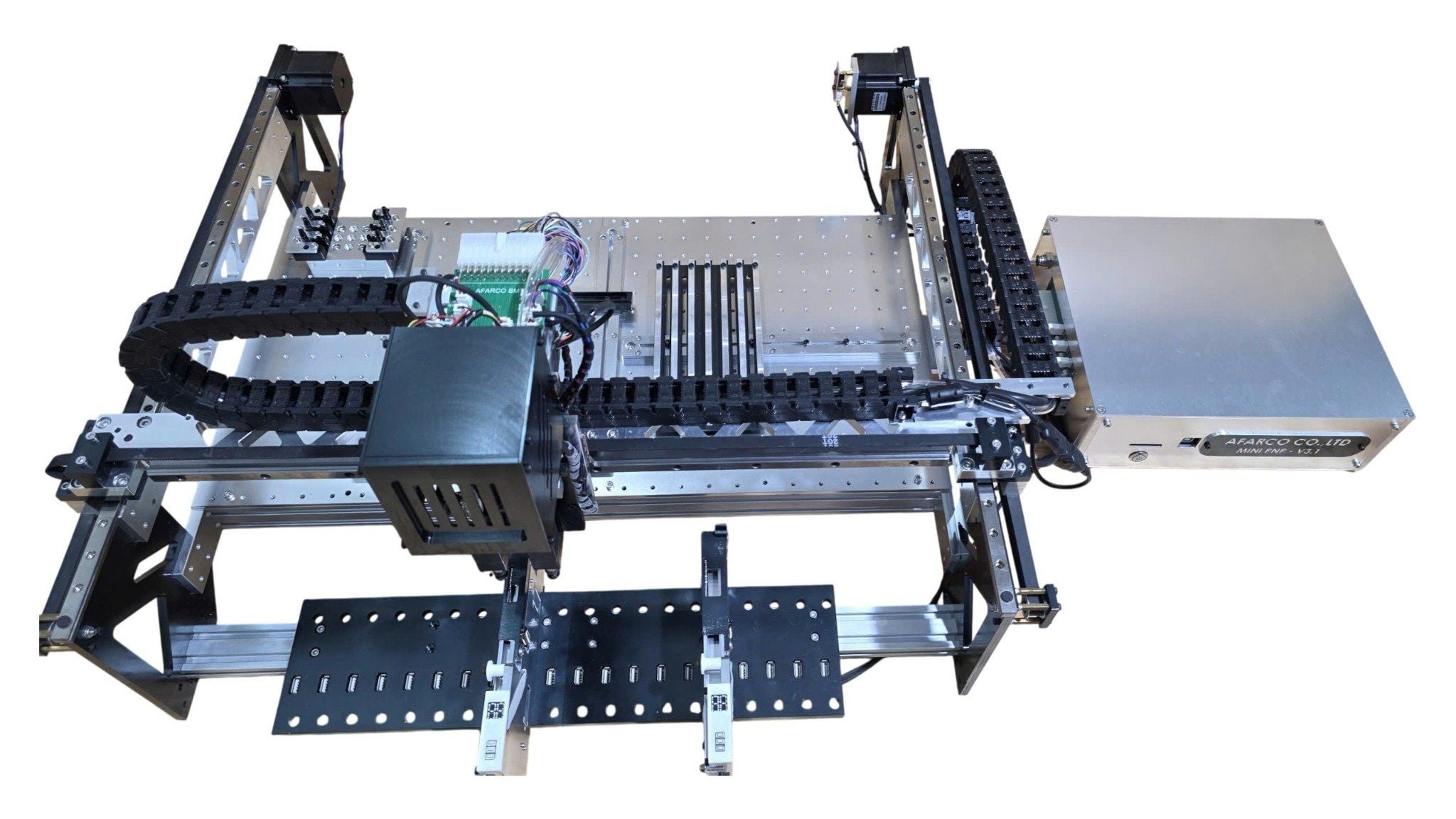

AFARCO MINI PNP V3.1

Product code: AFARCO MINI V3.1 Status: In stock Brand: Other

Price: $1,668

Quantity:

Leave your information, we will contact you!
contact.afarco@gmail.com

Bonus:

5% discount on AF Feeder when purchased with AFARCO PnP

What's special in version V3.1?

Developed on the AFARCO iRON PnP platform, with a full CNC aluminum frame and high performance electrical system

Best of the competition:

For just over $1000, you get a PnP machine with the highest level of finish.
You won't spend much time adjusting, installing and calibrating.
You won't need to 3D print the parts for installation
With the AFARCO Mini PnP V3.1, everything is plug and play.
Reduce the user's low cost and stable product performance - Newly designed Feeders, support the flexible ratio of different size Feeders.
Friendly interface, simple and easy to start - Newly developed software operating system, visualization programming and mounting.
Simple maintenance - Product line design is simple and clear, one-board high integration design.
Automatic SMT suction nozzles changer, flexible switching of multiple suction nozzles.

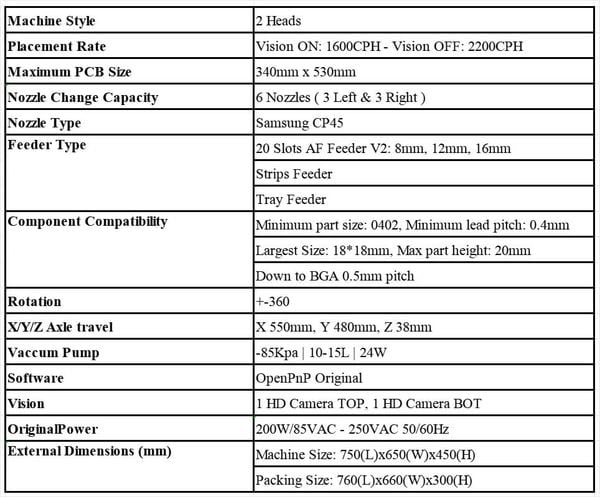

AFARCO Mini PnP V3.1 Specifications

New things

Mechanical position linkage, only 10 minutes to assemble and no alignment required

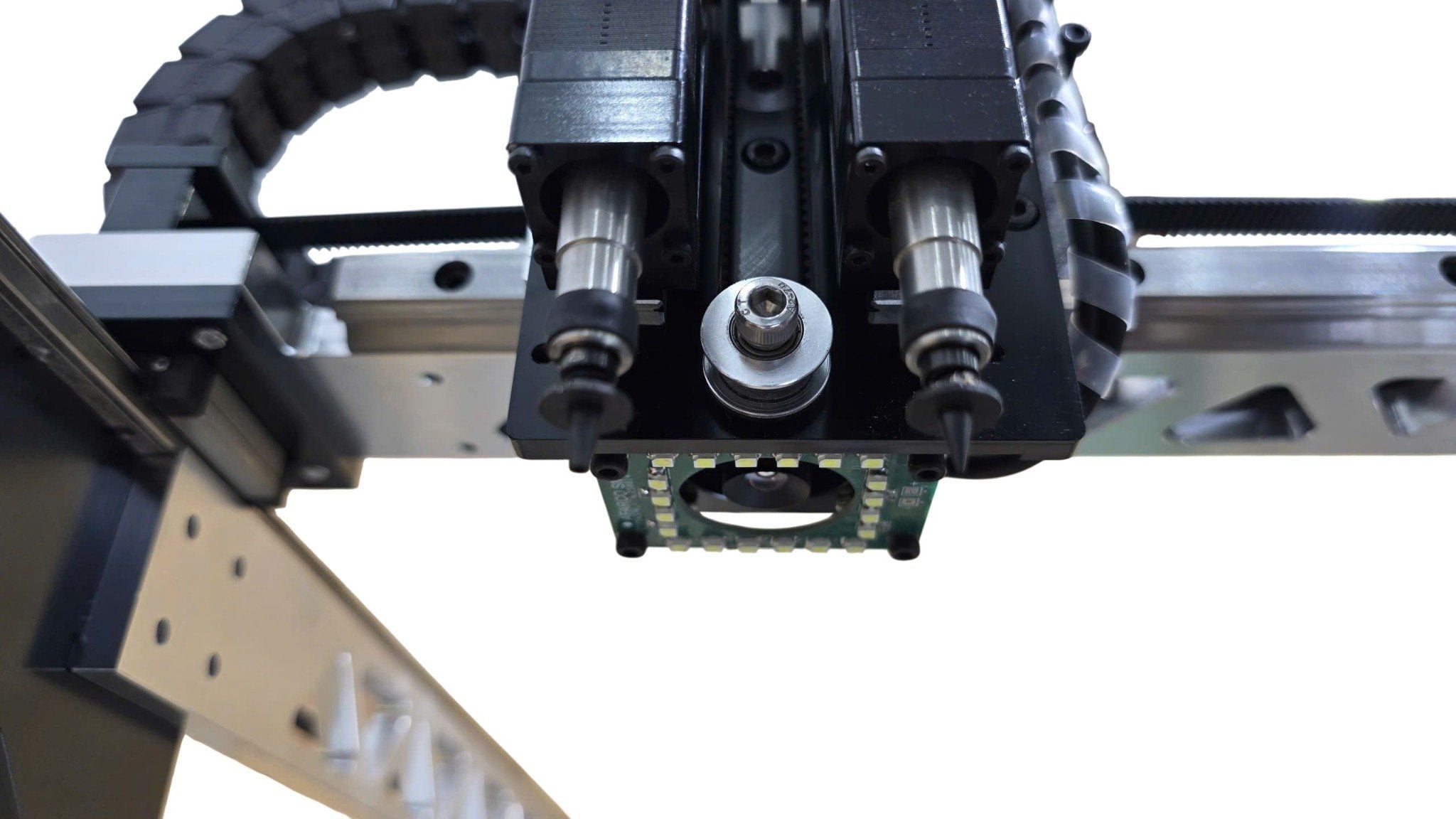

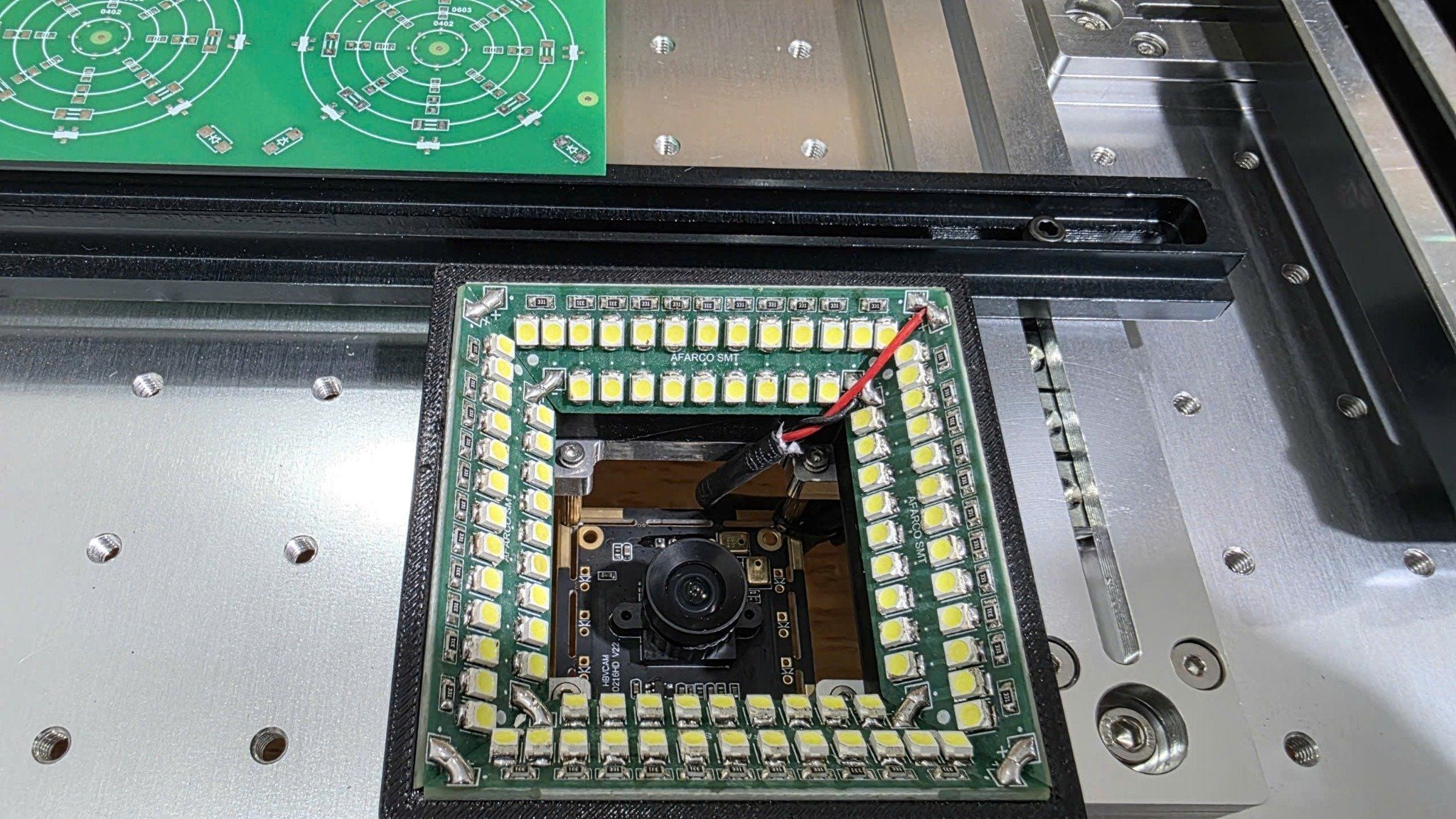

HD CAMERA Dual vision
Full 6061 aluminum alloy
Plug and play design
High-speed operation
Mechanical position linkage, only 10 minutes to assemble and no alignment required
Simple electrical installation, with connections that we have pre-designed

Some parts will be disassembled by us during shipping


AFARCO FRAME MINI V3.1	1 PCS
AFARCO MINI X-AXIS	1 PCS
AFARCO MINI Z HEADS	1 PCS
AFARCO AF FEEDER BASE 20 SLOTs	1 PCS

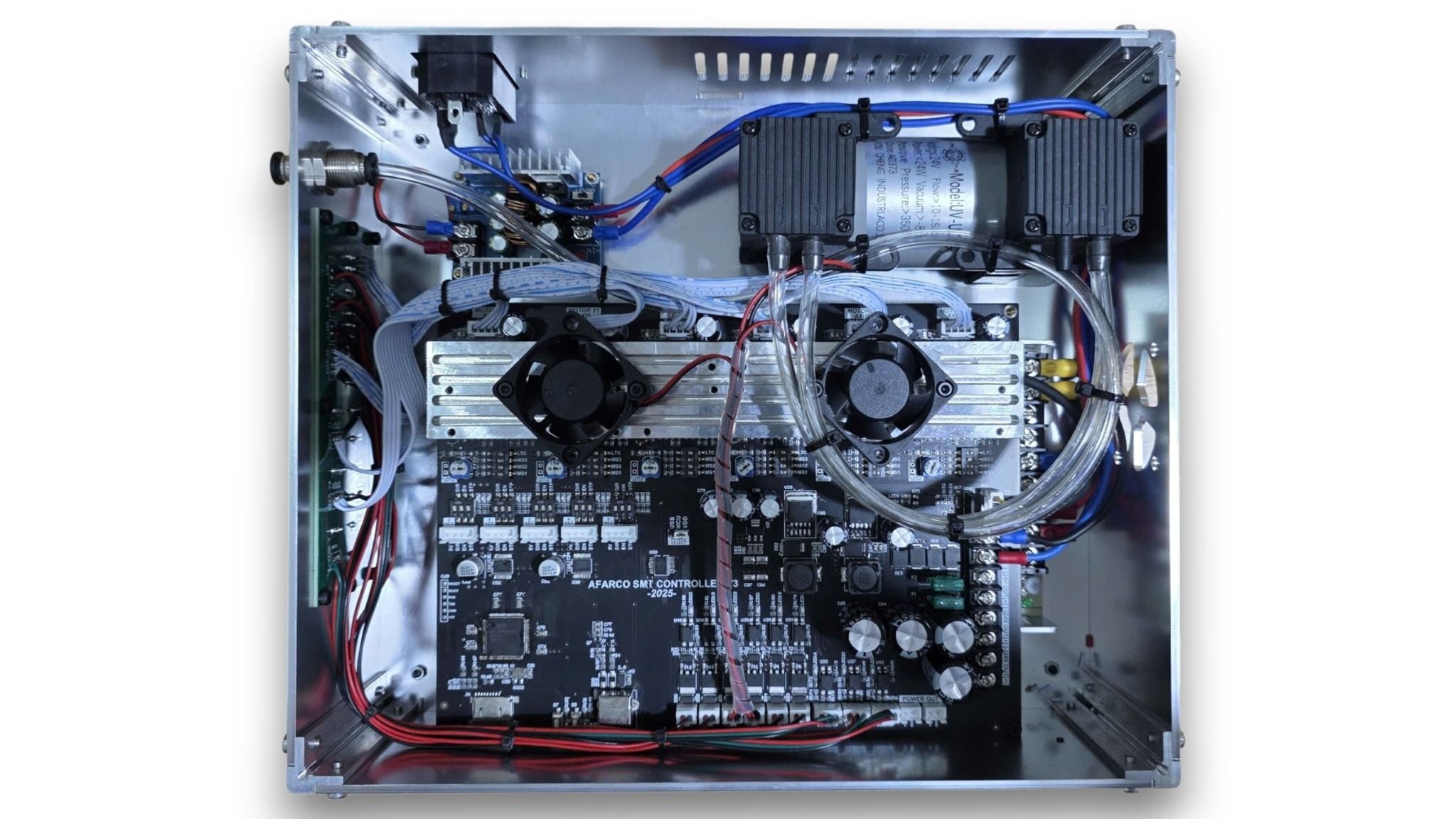

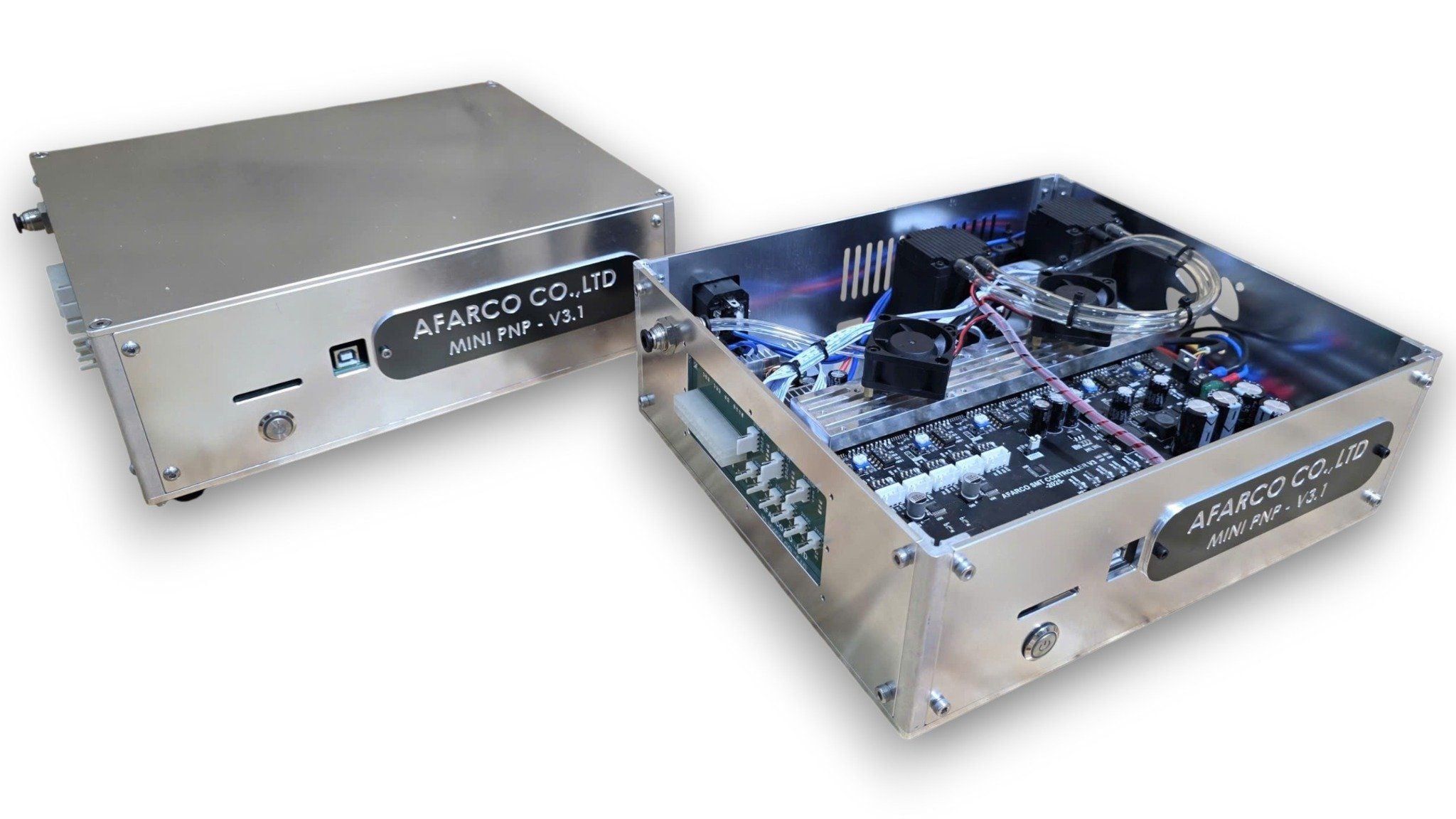

AFARCO ELECTRIC BOX	1 PCS
Z-X-Y CABLE	1 PCS
USB RS485	1 PCS
CABLE TYPE B (30CM)	1 PCS
CABLE USB-USB (30CM)	1 PCS
NOZZLE TIPs (065, 220, 400)	6 PCS
AFARCO PCB DEMO BOARD V1	1 PCS
PCB CLAMP SET	2 PCS
FOOT	4 PCS
SCREW M4	15 PCS
SCREW M5	8 PCS
SCREW M6	4 PCS

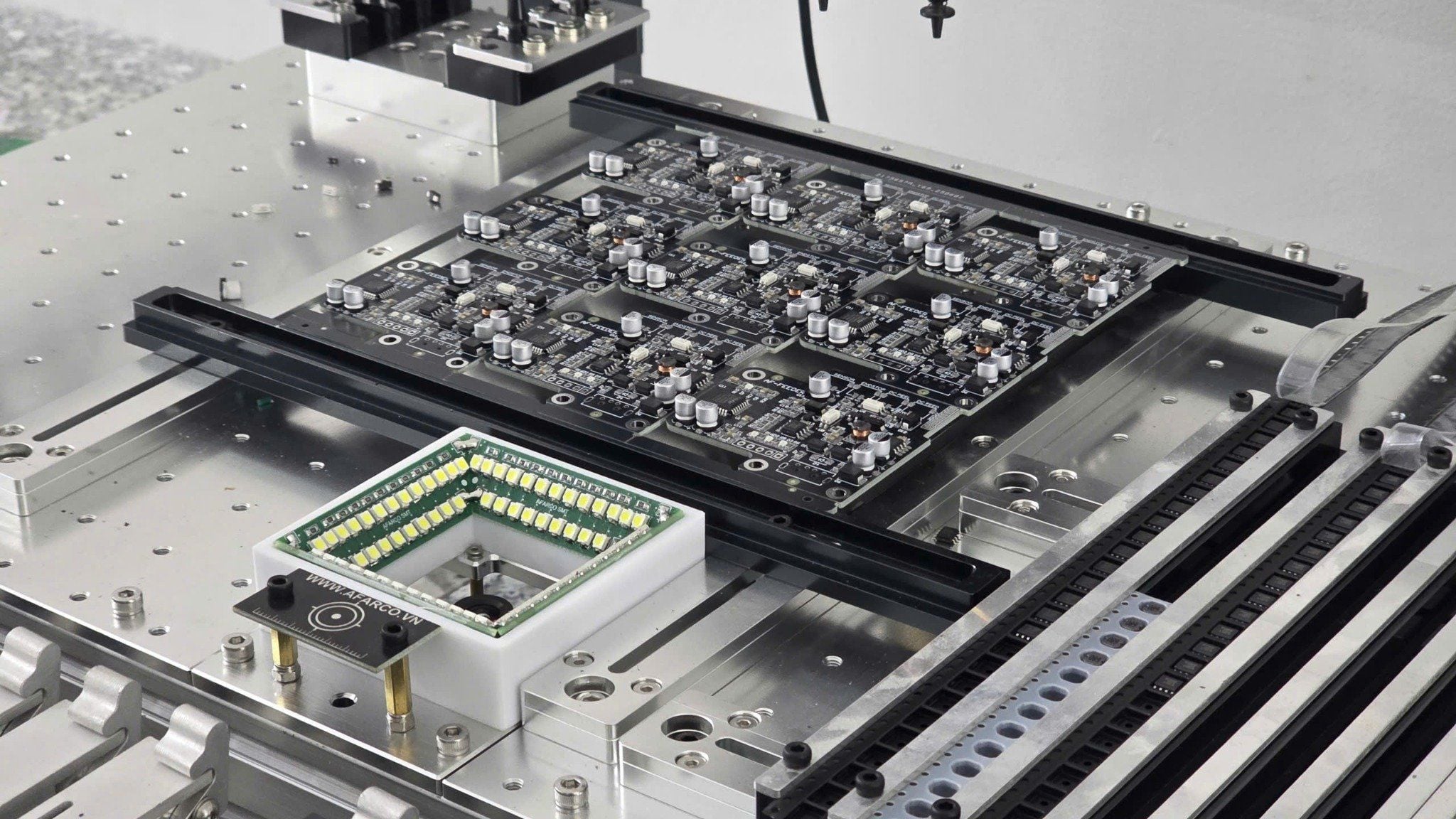

Use a variety of feeders

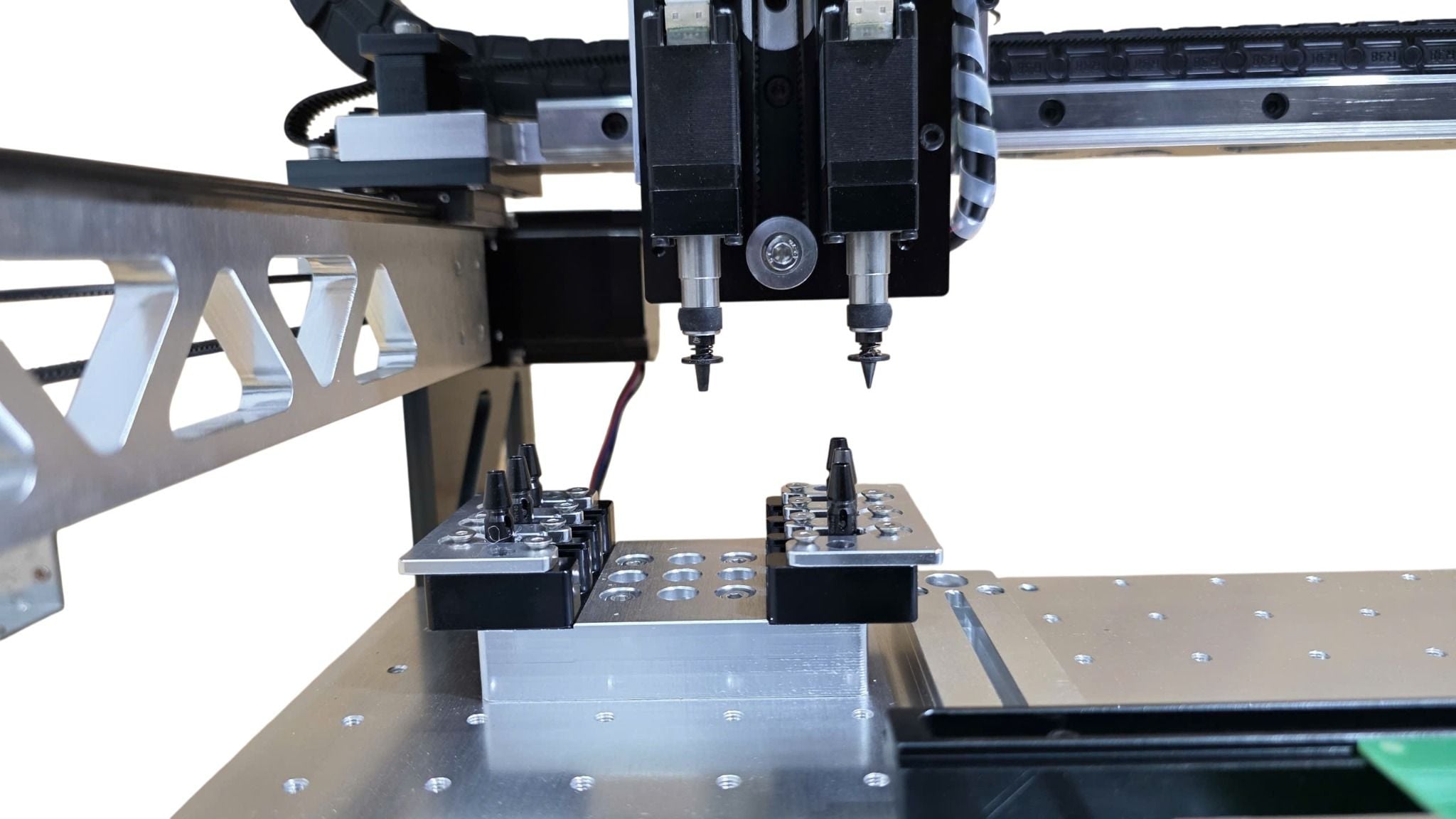

More efficient with Nozzle Station

PRECISE - EFFICIENT - FAST operation with 0402 size components

Upgrade your device, your work efficiency will improve significantly with AFARCO Mini PnP V3.1

3 Assembly Steps to Get a PnP Machine

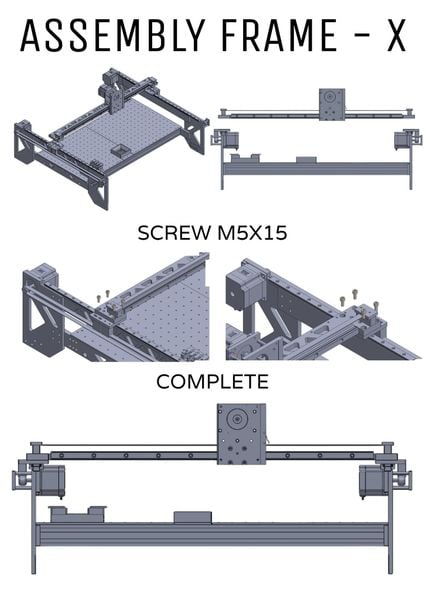

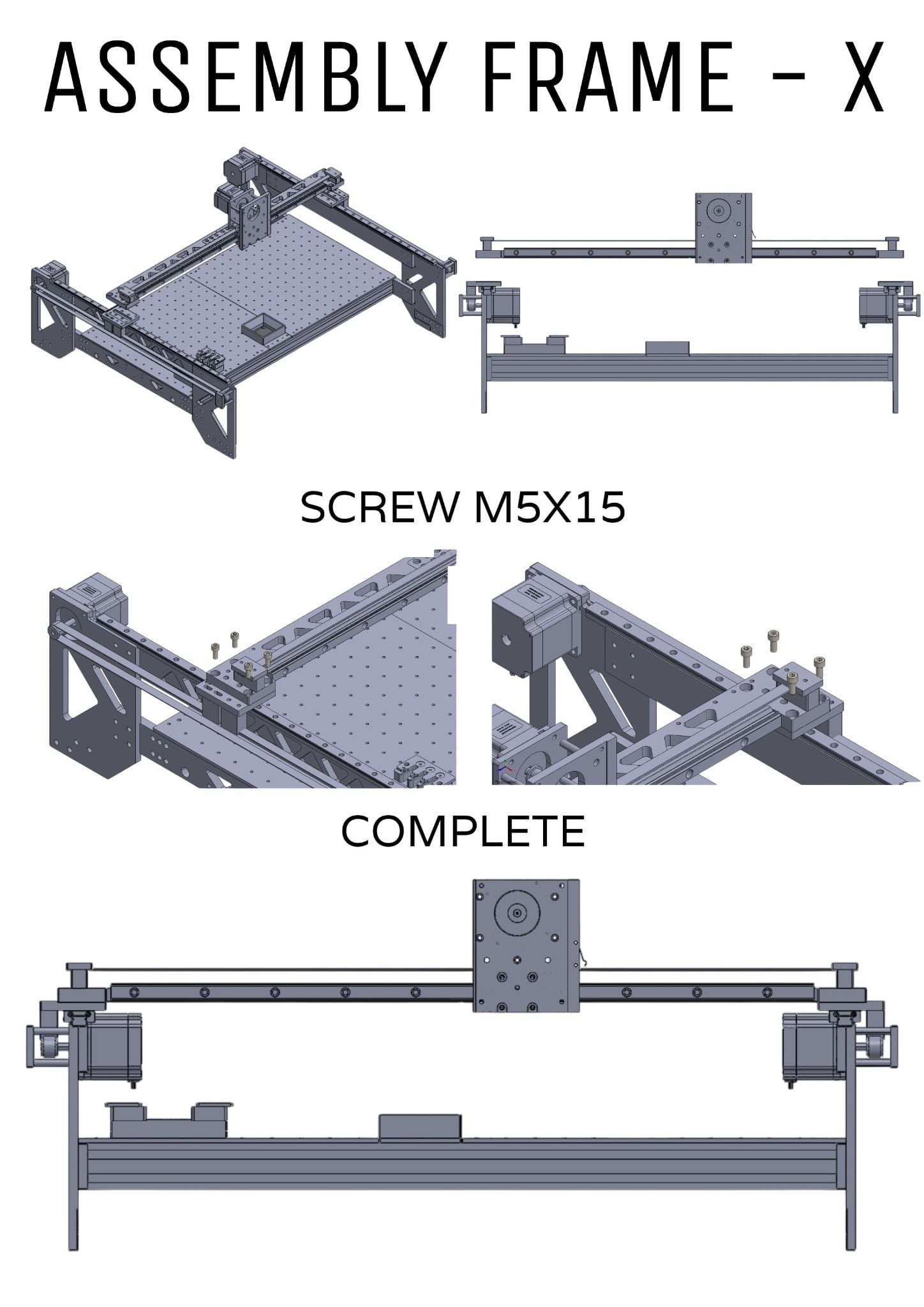

Step 1: Assembly Frame - X

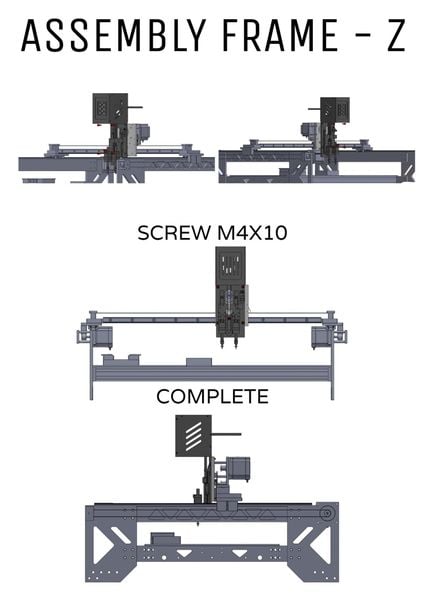

Step 2: Assembly Frame - Z

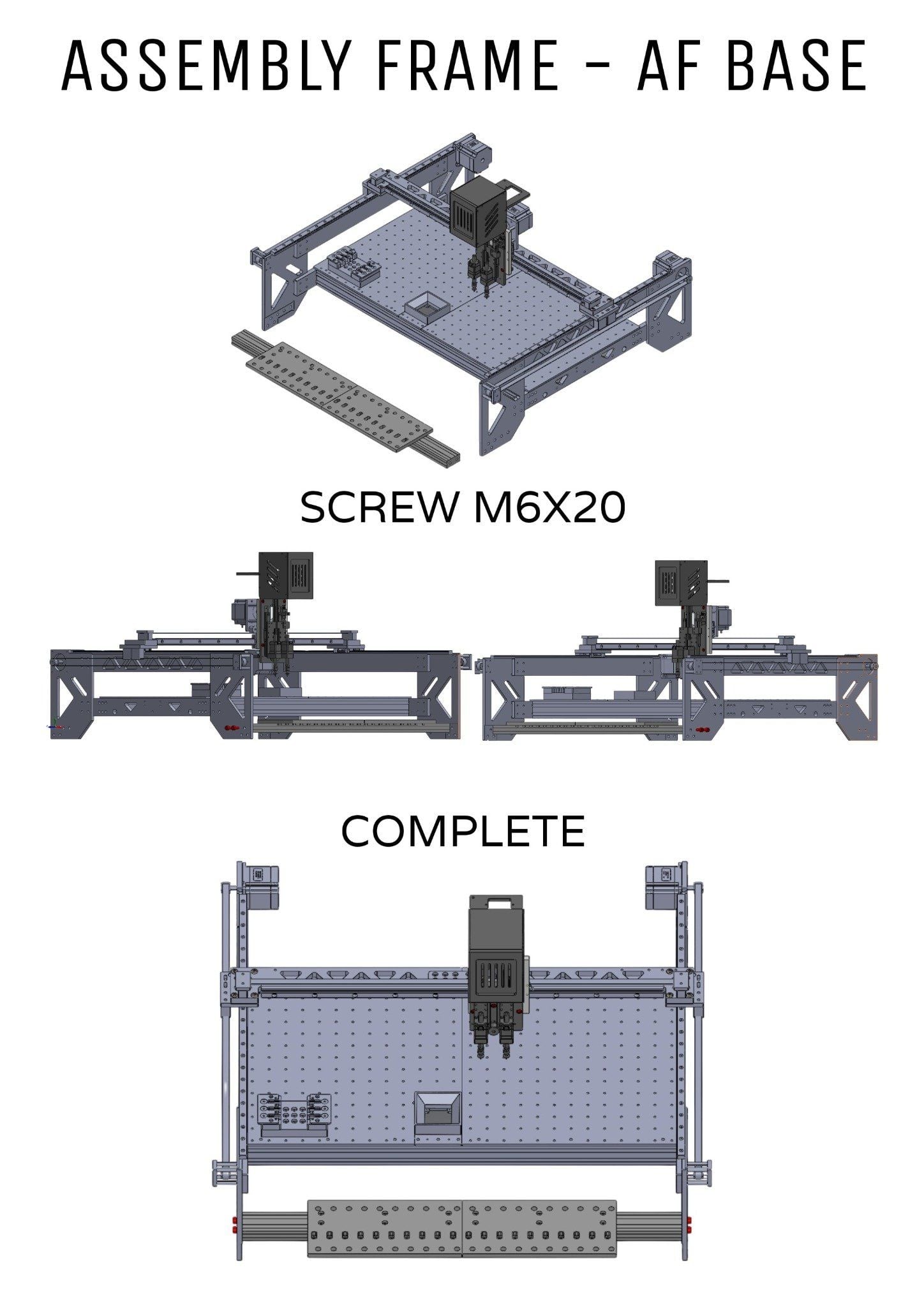

Step 3: Assembly Frame - AF Feeder Base

How do I order online?

AFARCO is pleased to support customers to order online in one of the following ways:
- Send order email to address: contact.afarco@gmail.com
- WhatsApp: +84 989 941 355

What is the maximum PCB size?

AFARCO Mini PnP : 340x540mm
AFARCO iRON PnP: 300x300mm

How much CPH does it operate at?

Vision ON: 1500 CPH Vision OFF: 2200 CPH

What control board does the machine use?

We use Smoothie platform which runs on MCU NXP LPC1769 clocked at 120Mhz

Active component size?

0402 Passives
0.4mm Pitch ICs
0.5mm Pitch BGA
