Inside the AFARCO MINI PNP V3.2: The Ultimate 32-Bit Desktop Pick and Place Machine
If you are an electronics hardware developer, a prototyping engineer, or running a boutique manufacturing studio, you know the struggle: outsourcing small-batch PCB assembly is expensive, while assembling complex surface-mount technology (SMT) components by hand is tedious and error-prone.
Enter the AFARCO MINI PNP V3.2. Engineered for reliability, precision, and ease of use, this desktop pick and place machine bridges the gap between DIY hobby tools and expensive industrial assembly lines.
In this comprehensive technical breakdown, we look under the hood at the mechanical, electrical, and vision upgrades that make the V3.2 the premier choice for modern desktop SMT production.
1. Heavy-Duty Mechanical Frame & Motion System
The foundation of any high-speed placement machine relies on structural rigidity and vibration dampening.

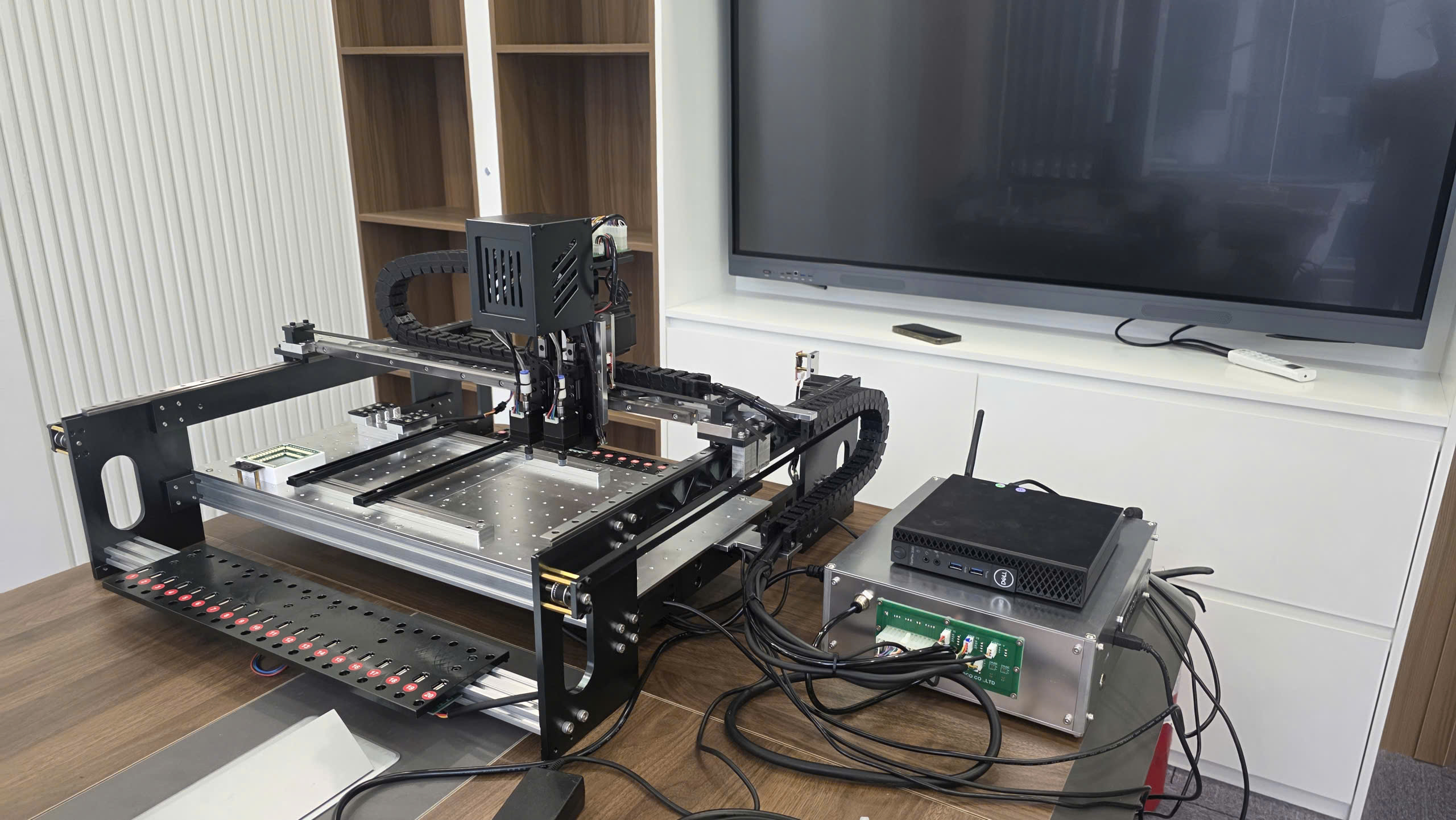

Precision CNC 6061 Aluminum Frame
The entire chassis of the AFARCO MINI V3.2 is engineered from solid 6061 aluminum alloy blocks, precision-milled via CNC with plate thicknesses of 8mm, 10mm, and 12mm. This heavy-duty architecture provides superior structural dampening, completely eliminating micro-vibrations when the dual placement heads move at peak acceleration.
Industrial-Grade Translation
- X-Axis: Powered by a high-precision, industrial square linear guide rail (15mm size, HGH15 series).
- Y-Axis: Configured in a dual-axis parallel drive system utilizing dual MGN12 linear rails (12mm).
- Transmission: The machine utilizes GT2 20-Tooth Pulleys paired with high-quality 10mm width rubber timing belts driven by high-torque Nema 23 stepper motors (Model 57BYGH56, 3A) and industrial TB6600 drivers. This robust combination ensures near-zero backlash and flawless repeatability.
2. High-Precision Z/R Axis & Dual-Head Assembly
Placement precision comes down to how accurately the machine can pick, rotate, and place a component onto its solder pad.
Smart Interlocking CNC Structure
The entire Z-axis and dual placement head structure features an advanced interlocking mechanical design. This tongue-and-groove engineering alignment guarantees absolute squaring during assembly, meaning you get industrial-grade vertical accuracy out of the box without complex manual calibration.
Reliable Component Rotation
The R-axis (rotation) features independent continuous $360^\circ$ motion powered by dual Size 28 stepper motors and TB6600 drivers, running high-quality 6mm width closed-loop timing belts.
- Nozzle System: Employs industry-standard Samsung CP45 nozzle holders integrated with high-speed rotary pneumatic unions.
- Sensory & Valves: Features Omron EE-SX674A high-precision slot-type optical sensors and DR100-5 industrial high-speed vacuum solenoid valves for instantaneous component pickup and release cycles.
3. High-Resolution Dual Computer Vision Network
Modern SMT requires computer vision to handle small passive chips (like 0402 or 0603) and fine-pitch integrated circuits (ICs).
[Top Down Camera] --> Automatically scans PCB Fiducials & Feeder coordinates.
[Bottom Up Camera] --> Automatically corrects component rotation & center offsets.
The AFARCO MINI PNP V3.2 features a dedicated dual-camera setup running 5 Megapixel (5MP) Ultra-HD image sensors. By pairing these high-res sensors with industrial 2.8mm focal-length lenses, the system achieves a balanced $74^\circ$ horizontal field of view (FOV). This specific configuration heavily mitigates barrel distortion, preventing pixel warping so that the vision pipelines can accurately detect component edges.
Both cameras are surrounded by fully independent, adjustable LED Ring Lights to maintain perfect contrast regardless of workshop lighting conditions.
4. Solid Aluminum Bed & Expansive Workspace
To maintain a consistent Z-axis placement height across the entire assembly area, a perfectly flat reference plane is critical.
The V3.2 features a spacious 280mm x 550mm working envelope made entirely of 4mm thick solid 6061 aluminum. The surface is precision-drilled into a modular grid of tapped M4 threaded holes spaced exactly 25mm apart. This standardized grid matrix allows operators to quickly clamp production PCBs, secure loose cut-tape strips, or mount custom matrix IC component trays in a matter of seconds.
5. Upgraded 40-Slot Automated AF Feeder Bank
High-mix production requires massive component capacity. The feeder zone on the AFARCO MINI PNP V3.2 has been completely redesigned to scale up your manufacturing output:
- 40 Automated Positions: The feeder docking array has been expanded to support up to 40 independent automated slots, allowing you to keep all your passive resistors, capacitors, and diodes loaded simultaneously.
- Versatile Tape Support: Fully compatible with automated AF Feeders in 8mm, 12mm, and 16mm sizes.
- Industrial RS485 Communication Bus: Rather than relying on fragile single-ended signals prone to electrical noise, the entire automatic feeder array communicates over a centralized, industrial-grade RS485 network. This ensures rock-solid command transmission and high noise immunity during long-run production cycles.
6. Modular External Control Enclosure & OpenPnP
One of the most significant architectural upgrades in the V3.2 is the complete isolation of the machine’s electronics.
+--------------------------+ High-Speed USB +---------------------------+
| AFARCO V3.2 PnP Body | <========================> | Isolated External Box |
| (Motors, Valves, Vision) | | (MCU, Drivers, Power, Pump|
+--------------------------+ +---------------------------+
Isolated Electronics Box
The entire electrical network, power supply, and control hardware have been moved out of the machine chassis into a standalone External Control Box. This modular configuration isolates the machine structure from heat, simplifies maintenance, and makes hardware troubleshooting or driver adjustments incredibly straightforward.
The Technical Hardware Stack
- Microcontroller: 32-bit ARM-based LPC1769 MCU running at a rapid 120MHz frequency with 512KB Flash and 64KB SRAM.
- Firmware: Pre-configured Smoothieware firmware supporting on-the-fly machine changes via a single, simple config.txt file on the MicroSD card.
- Power Supply Unit: Genuine industrial Meanwell LRS-350-24 (Output: 24V, 14.6A), ensuring steady voltage regulation.
- Pneumatics: An integrated, ultra-quiet 24VDC, 24W vacuum pump pulling a high-efficiency vacuum performance of -90 kPa.
- Software Ecosystem: Direct native synchronization with OpenPnP, running flawlessly across both Windows and Ubuntu Linux host systems.
Conclusion: Desktop Prototyping, Industrial Build
The AFARCO MINI PNP V3.2 successfully strips away the compromises typically found in desktop-class SMT machines. By combining a rigid CNC 6061 aluminum body, heavy square linear rails, a high-capacity 40-slot RS485 automatic feeder bank, and a completely isolated external 32-bit control box, it delivers a robust production workhorse directly to your workbench.
Ready to take control of your hardware manufacturing pipeline and master your internal PCB assembly?
Contact us today for a custom quote, lead times, or worldwide shipping options!
